Catalytic Converter LH: Installation
WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
- 1.
NOTE:
Evenly tighten the LH catalytic converter nuts.

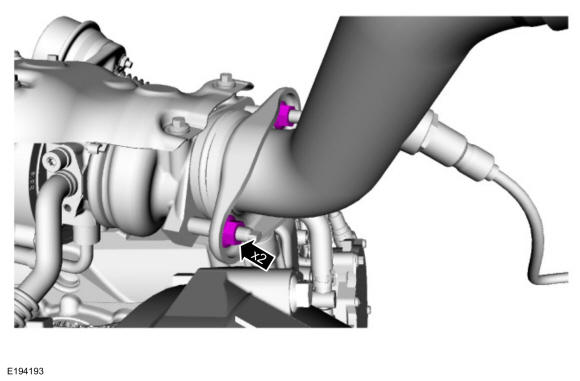

Position the LH catalytic converter in vehicle with a new gasket. Install the LH catalytic converter nuts.
Torque
: 30 lb.ft (40 Nm)
 Courtesy of FORD MOTOR COMPANY
|
- 2.
Tighten the clamp.Torque
: 41 lb.ft (55 Nm)
 Courtesy of FORD MOTOR COMPANY
|
- 3.

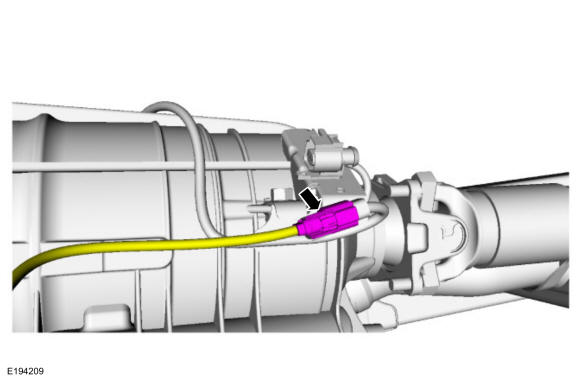

Connect the catalyst monitor sensor electrical connector.
 Courtesy of FORD MOTOR COMPANY
|
- 4.

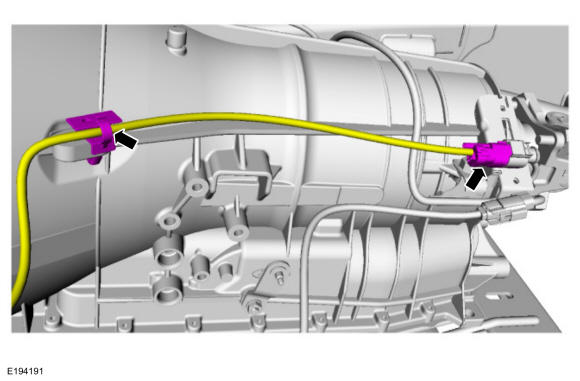

Connect the HO2S electrical connector and attach the wire clip.
 Courtesy of FORD MOTOR COMPANY
|
- 5.
If equipped, install the underbody shield.Torque
: 71 lb.in (8 Nm)
 Courtesy of FORD MOTOR COMPANY
|
- 6.
Check the exhaust system for leaks.
