Transfer Case Shift Motor: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

1.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

2.

Disconnect the harness connector.

Courtesy of FORD MOTOR COMPANY

3.

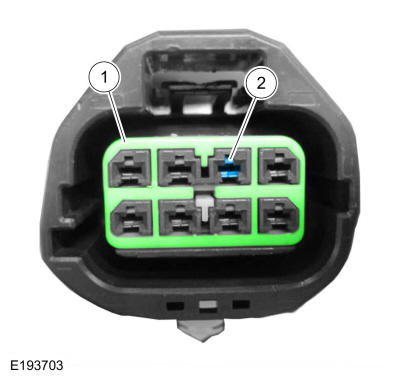

Remove the coil wire pin from the electrical connector.
1. 1.

  Remove the inner retainer from the wire connector.
1. 2.

  Press the release tab and remove the coil wire pin.

Courtesy of FORD MOTOR COMPANY

4.

Remove the transfer case shift motor bracket bolt.

Courtesy of FORD MOTOR COMPANY

5.

Remove the mounting bolts and the transfer case shift motor.

Courtesy of FORD MOTOR COMPANY
