Mode Select Switch (MSS): Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

  1. 1.

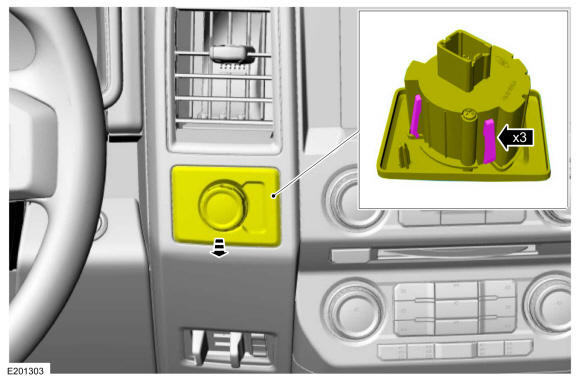

    Carefully pry the MSS from the instrument panel.
GFD41938Courtesy of FORD MOTOR COMPANY

  1. 2.

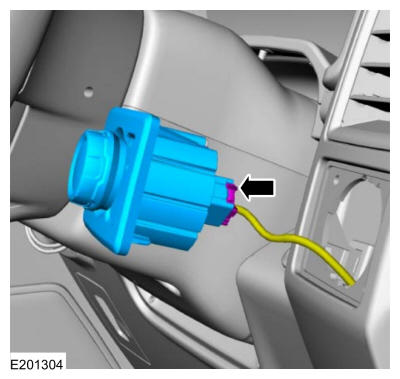

    Disconnect the MSS harness connector and remove the switch.
GFD41939Courtesy of FORD MOTOR COMPANY
