Integrated Wheel End (IWE): Removal
WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
- 1.
Remove the brake disc. Refer to: Brake Disc .
- 6.
- 1.

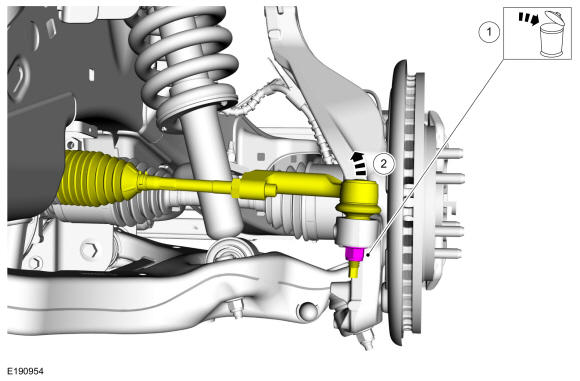

Remove and discard the outer tie rod end nut.
- 2.NOTE: Do not use a hammer to separate the outer tie-rod end from the wheel knuckle or damage to the wheel knuckle may result.
Separate the outer tie rod end from the wheel knuckle.
Use the General Equipment: Tie Rod End Remover
- 1.
- 7.
- 1.

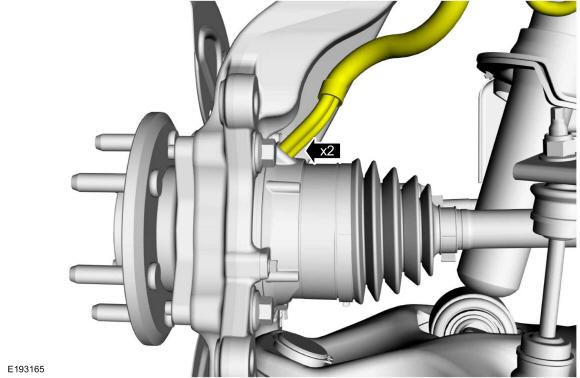

Remove the wheel speed sensor wire bracket bolt.
- 2.
Unclip the wheel speed sensor wire from the brake hose.
- 3.
Unclip the 2 wheel speed sensor wire retainers and position aside the wheel speed sensor wire.
- 1.
- 11.

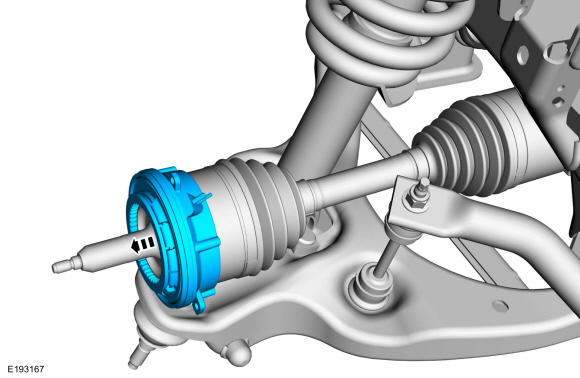

Separate the upper ball joint from the wheel knuckle.Use Special Service Tool: 204-592 Separator, Lower Arm Ball Joint.
- 12.

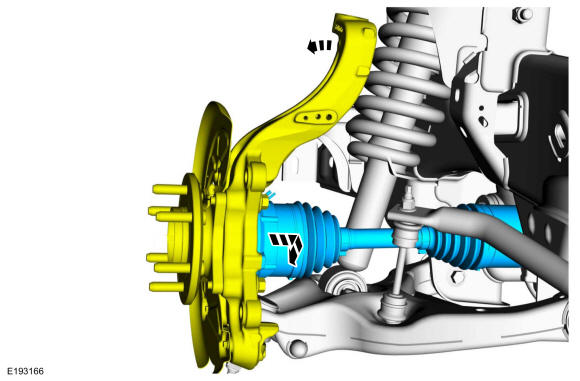

Position the wheel knuckle to gain access and remove the CV shaft joint outboard end and IWE disconnect from the steering knuckle hub bearing.
