Tailgate Moulding: Removal
WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
All vehicles
- 1.

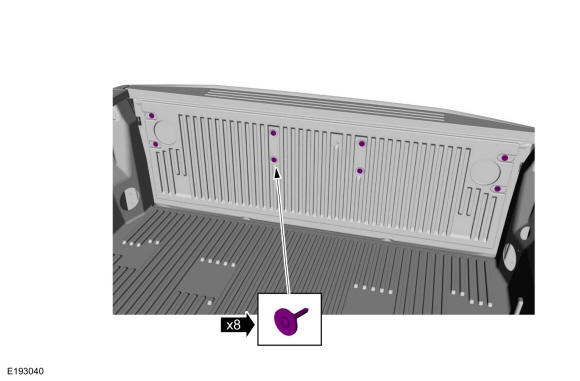

Remove the 8 screws from the tailgate liner.Torque
: 28 lb.in (3.2 Nm)
 Courtesy of FORD MOTOR COMPANY
|

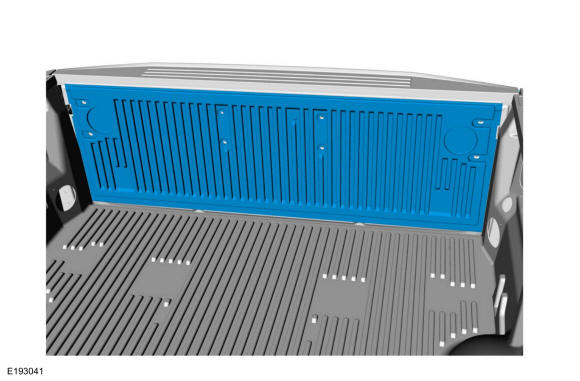

- 2.
Remove the tailgate liner.
 Courtesy of FORD MOTOR COMPANY
|
- 3.

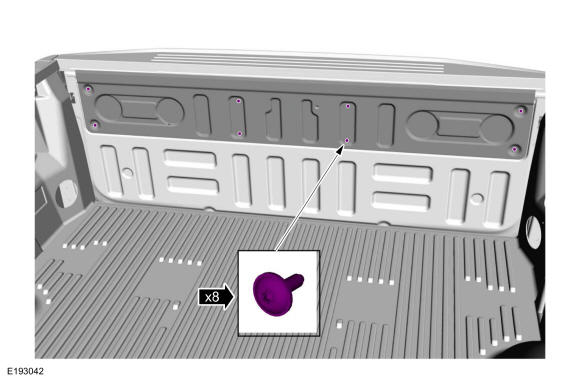

Remove the 8 screws from the inner panel.Torque
: 28 lb.in (3.2 Nm)
 Courtesy of FORD MOTOR COMPANY
|
- 4.

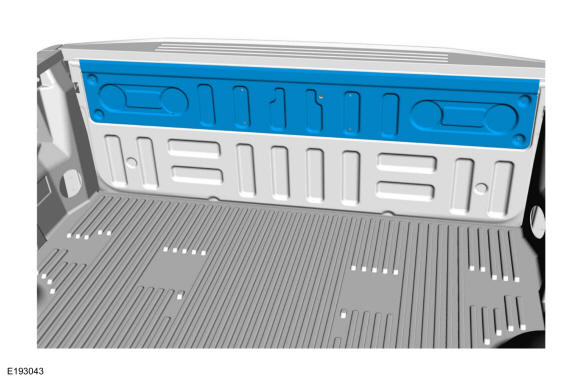

Remove the inner panel.
 Courtesy of FORD MOTOR COMPANY
|
Vehicles without Flexible Step
- 5.

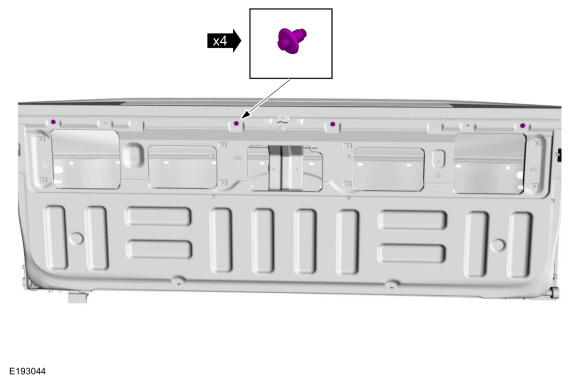

Remove the 4 push pin retainers.
 Courtesy of FORD MOTOR COMPANY
|
- 6.

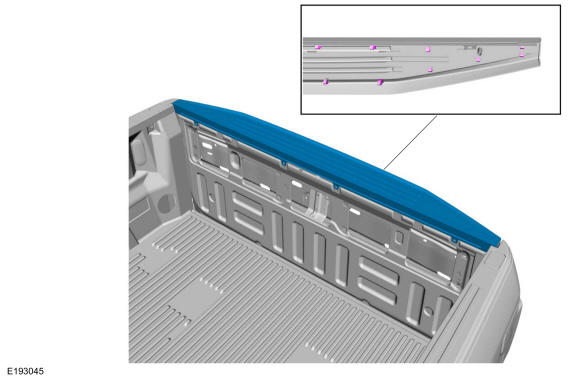

Using a non-marring trim tool, disengage the retainers from the tailgate and remove the moulding.
 Courtesy of FORD MOTOR COMPANY
|
Vehicles with Flexible Step
- 7.

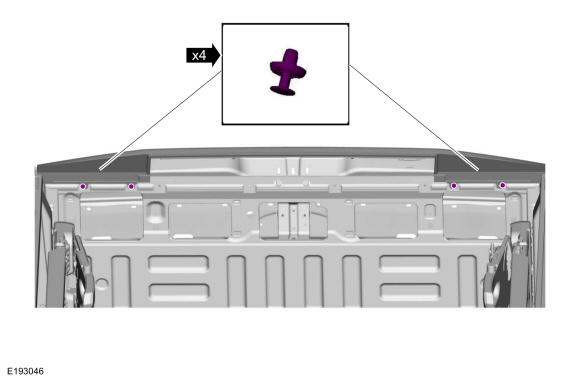

Remove the 4 push pin retainers.
 Courtesy of FORD MOTOR COMPANY
|

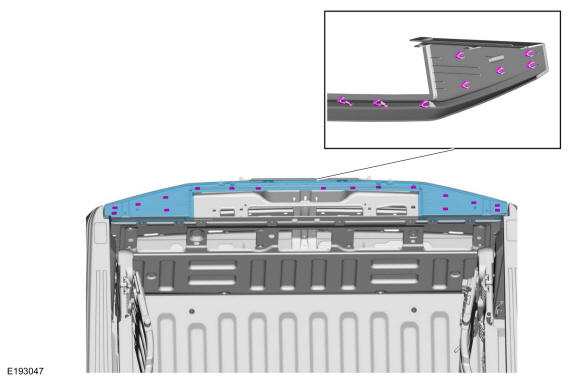

- 8.
Using a non-marring trim tool, disengage the retainers from the tailgate and remove the moulding.
 Courtesy of FORD MOTOR COMPANY
|
Vehicles with Tailgate Applique
- 9.

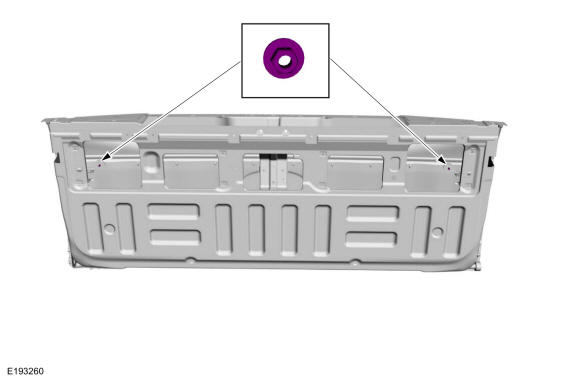

Remove the 2 retainer nuts and washers.Torque
: 36 lb.in (4.1 Nm)
 Courtesy of FORD MOTOR COMPANY
|
- 10.
NOTE:
Use care when disengaging push pins from tailgate to avoid damage to the applique.

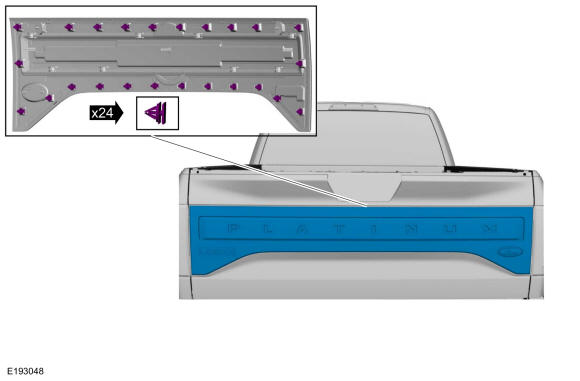

Using a non-marring trim tool, disengage the 24 push pin retainers from the tailgate and remove the applique.
 Courtesy of FORD MOTOR COMPANY
|
