Running Board Control Module (RBM): Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.

  1. 1.

    Remove the loadspace trim panel. Refer to: Loadspace Trim Panel - SuperCab/SuperCrew .

  1. 2.

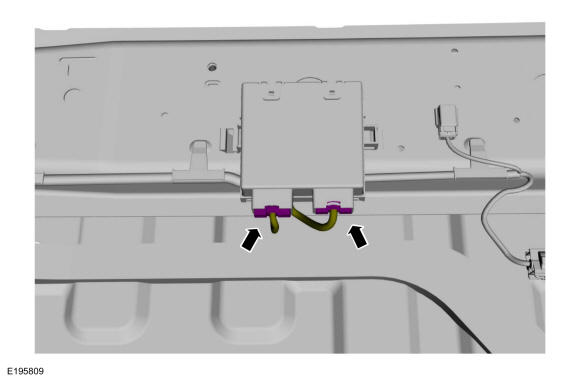

    Disconnect the electrical connectors.
GFD42854Courtesy of FORD MOTOR COMPANY

  1. 3.

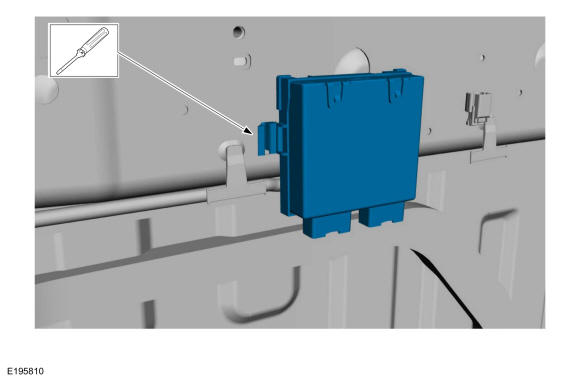

    Using a flat blade screwdriver or equivalent, depress the tab to remove the module.
GFD42855Courtesy of FORD MOTOR COMPANY
