Power Running Board (PRB): Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

1.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

2.

NOTE: RH side shown, LH side similar.

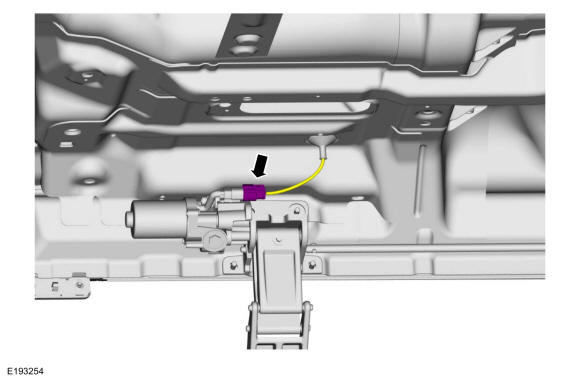

Disconnect the electrical connector.

Courtesy of FORD MOTOR COMPANY

3.

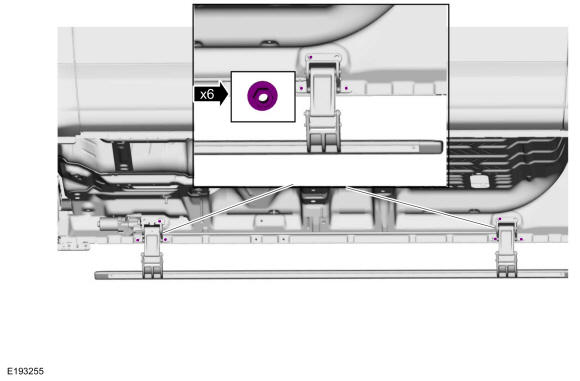

Remove the 6 nuts from the attachment brackets.
Torque

: 16 lb.ft (22 Nm)

Courtesy of FORD MOTOR COMPANY

4.

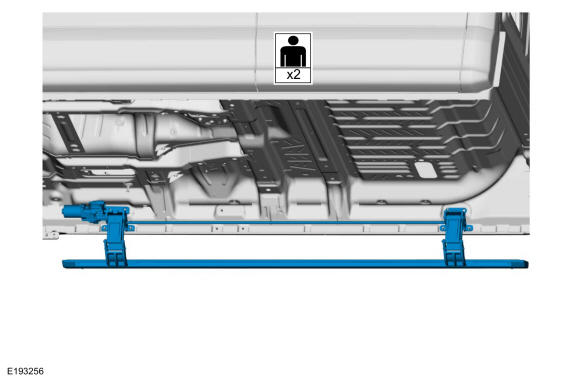

Remove the power running board assembly.

Courtesy of FORD MOTOR COMPANY
