Power Running Board (PRB) Hinge: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

1.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

2.

NOTE: LH side shown, RH side similar.

NOTE: Support the running board with a jackstand.

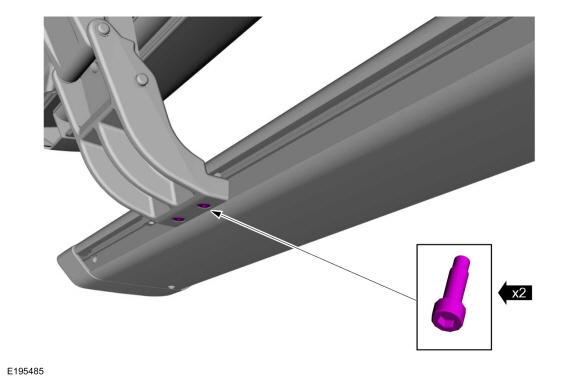

Remove the 2 screws.

Courtesy of FORD MOTOR COMPANY

3.

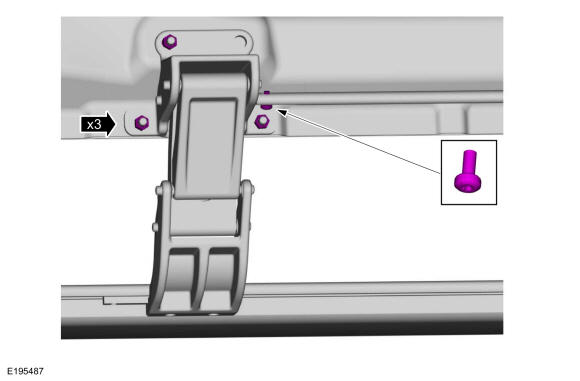

Remove the 3 nuts and 1 screw.
Torque

: 16 lb.ft (22 Nm)

Courtesy of FORD MOTOR COMPANY

4.

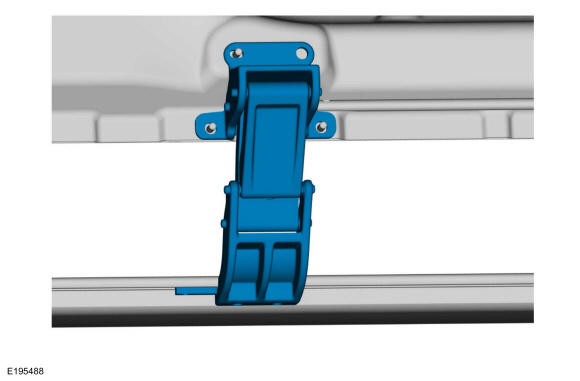

Disengage the torque rod and remove the bracket assembly.

Courtesy of FORD MOTOR COMPANY
