Power Running Board (PRB) Connecting Rod: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: LH side shown, RH similar.

1.

Remove the rear running board bracket. Refer to: Power Running Board (PRB) Hinge .

2.

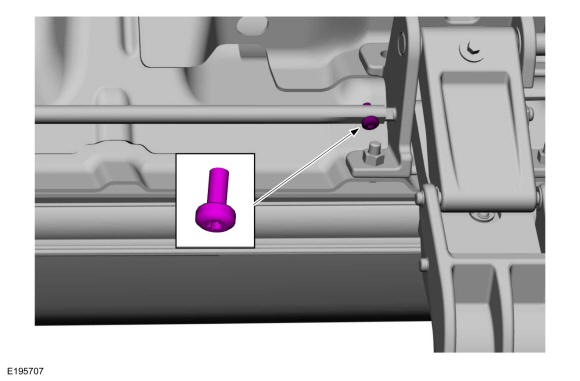

Remove the screw.
Torque

: 16 lb.ft (22 Nm)

Courtesy of FORD MOTOR COMPANY

3.

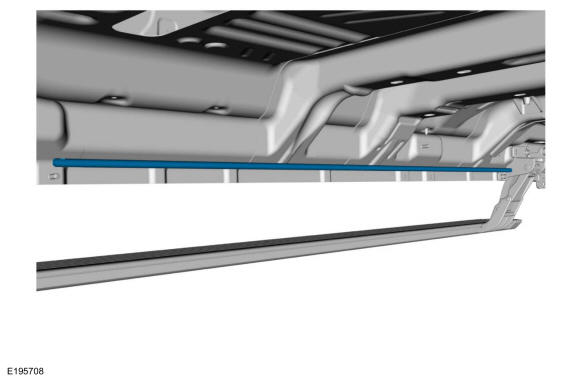

Remove the connecting rod.

Courtesy of FORD MOTOR COMPANY
