Pickup Bed Side Step: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
NOTE: LH side shown, RH side similar.

  1. 1.

    With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

  1. 2.

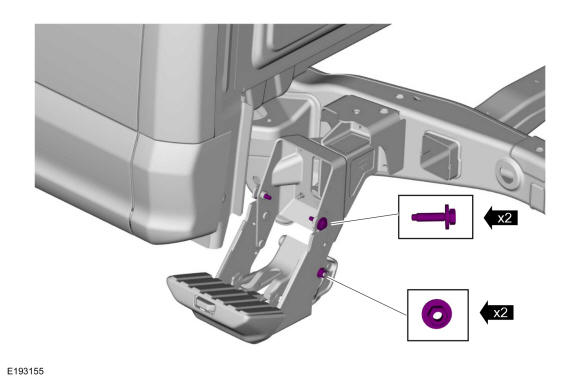

    NOTE: If equipped, SuperCrew 5.5 ft. styleside pickup box.

    Remove the 2 bolts and 2 nuts from the step assembly.

    Torque

    : 30 lb.ft (41 Nm)

GFD42818Courtesy of FORD MOTOR COMPANY

  1. 3.

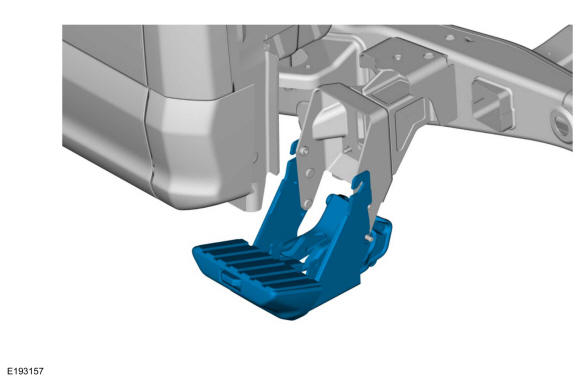

    Remove the step assembly.
GFD42819Courtesy of FORD MOTOR COMPANY

  1. 4.

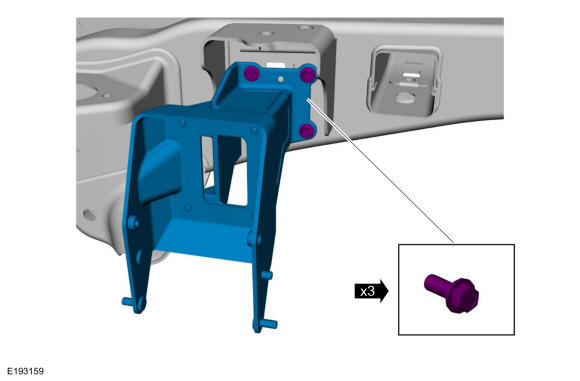

    Remove the 3 bolts and remove the bracket assembly.

    Torque

    : 30 lb.ft (41 Nm)

GFD42820Courtesy of FORD MOTOR COMPANY

  1. 5.

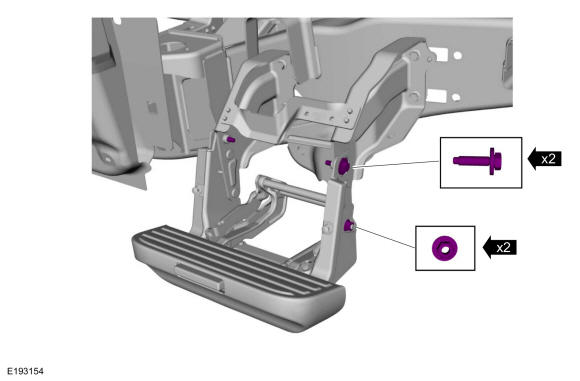

    NOTE: If equipped with 8.5 ft. or 6.5 ft. styleside pick up box.

    Remove the 2 bolts and 2 nuts from the step assembly

    Torque

    : 30 lb.ft (41 Nm)

GFD42821Courtesy of FORD MOTOR COMPANY

  1. 6.

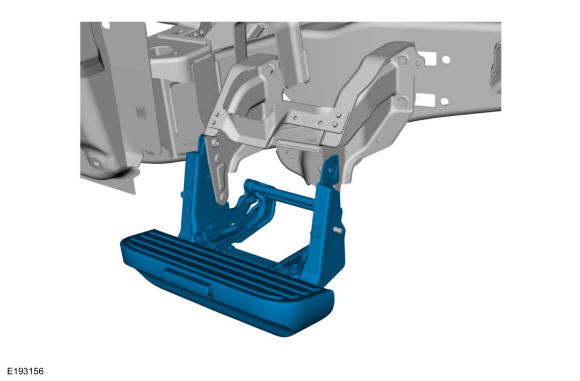

    Remove the step assembly.
GFD42822Courtesy of FORD MOTOR COMPANY

  1. 7.

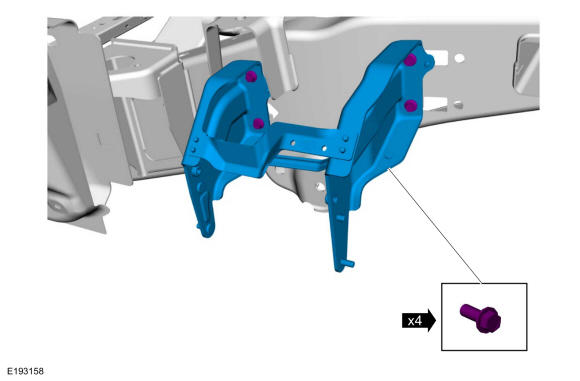

    Remove the 4 bolts and remove the bracket assembly.

    Torque

    : 30 lb.ft (41 Nm)

GFD42823Courtesy of FORD MOTOR COMPANY
