Front Fender Moulding: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: LH side shown, RH side similar.

1.

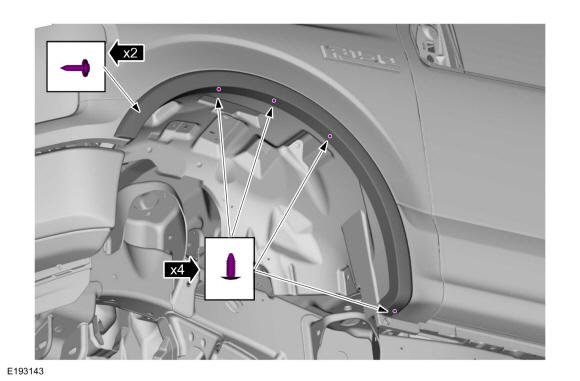

Remove the push pins and the screws.
Torque

: 9 lb.in (1.0 Nm)

Courtesy of FORD MOTOR COMPANY

2.

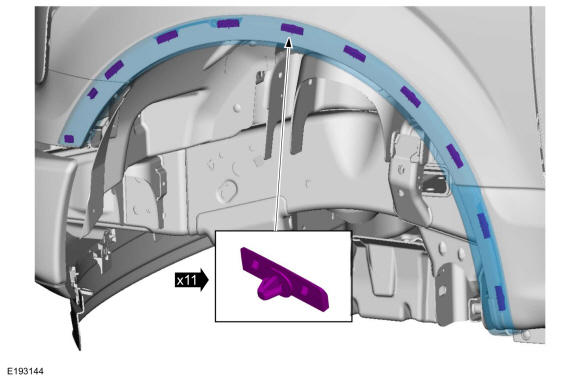

Using a non-marring trim tool, disengage the push pin retainers from the fender and remove the moulding.

Courtesy of FORD MOTOR COMPANY
