Bodyside Moulding: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
NOTE: The following steps detail the various bodyside mouldings located on the cab and pickup bed. It is not all inclusive as trim levels may vary from vehicle to vehicle.
NOTE: LH side views shown, RH side similar.

Cab Upper Moulding

  1. 1.

    Using a non-marring trim tool, detach the 7 push pin retainers and remove the moulding.

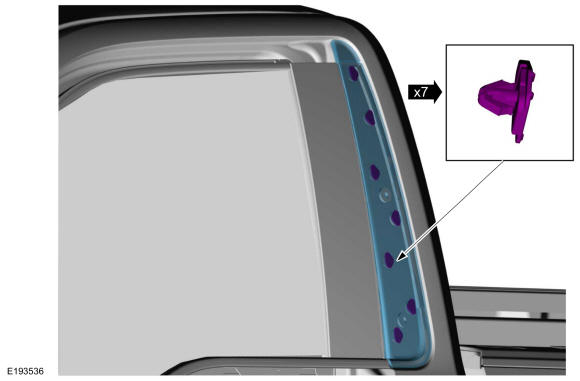

GFD42801Courtesy of FORD MOTOR COMPANY

Cab Lower Moulding

  1. 2.

    Remove the push pin from the lower cab corner moulding.

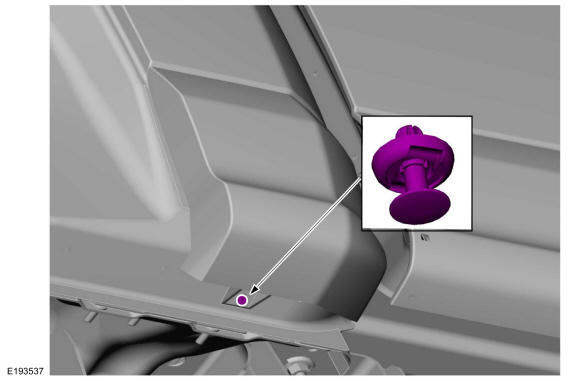

GFD42802Courtesy of FORD MOTOR COMPANY

  1. 3.

    Using a non-marring trim tool, detach the 7 push pin retainers and remove the lower cab corner moulding.

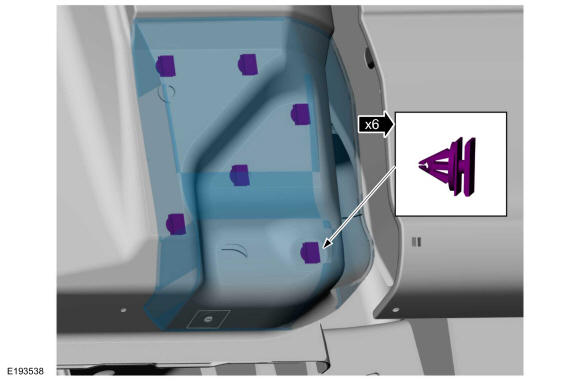

GFD42803Courtesy of FORD MOTOR COMPANY

Pickup Bed Lower Moulding

  1. 4.

    Remove the 6 push pin retainers.

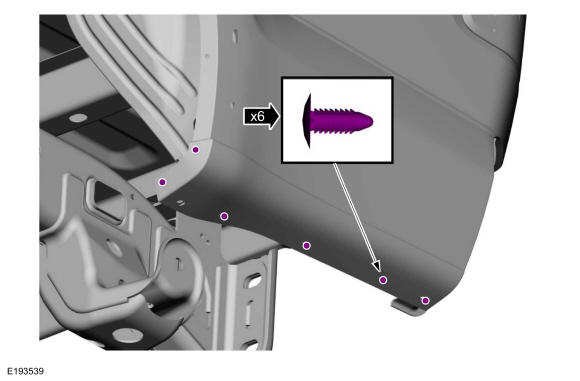

GFD42804Courtesy of FORD MOTOR COMPANY

  1. 5.

    Using a non-marring trim tool, detach the retainers from pick up bed and remove the moulding.

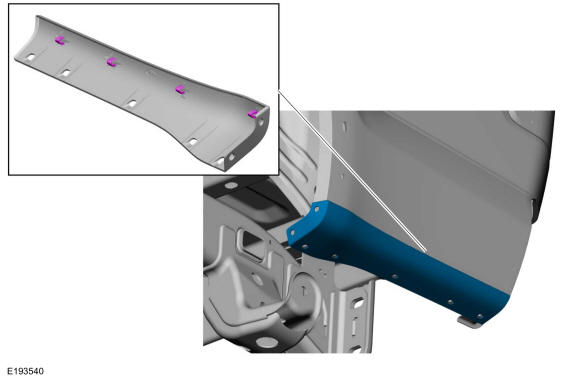

GFD42805Courtesy of FORD MOTOR COMPANY

Pickup Bed Upper Rail Moulding

  1. 6.

    Using a non-marring trim tool, carefully detach the retainers along the length of the moulding and remove the moulding.

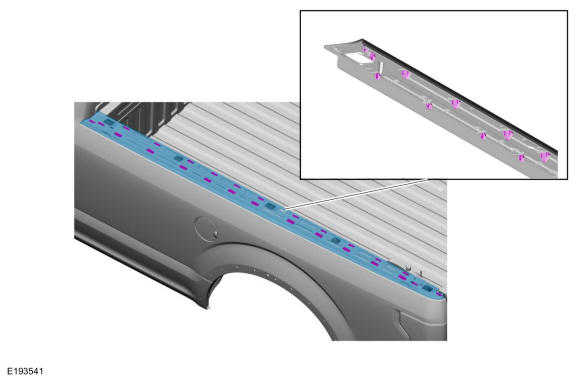

GFD42806Courtesy of FORD MOTOR COMPANY
