Transfer Case Front Output Shaft Seal - (Vehicles With: 2-Speed Torque On Demand Transfer Case): Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

1.

Remove the transfer case. Refer to: Transfer Case .

2.

NOTE: Seal all openings before cleaning the transfer case exterior. This will prevent entry of dirt and water, which may cause damage to internal components.

Clean the transfer case with solvent and dry with compressed air.

3.

Using a transmission adjustable mounting arm, secure the transfer case to the bench.
Use the General Equipment: Adjustable Mounting Arm

Courtesy of FORD MOTOR COMPANY

4.

Remove the transfer case rear seal. Refer to: Transfer Case Rear Seal .

5.

Remove the coil wire pin from the electrical connector.
- 1.

  Remove the inner retainer from the wire connector.
- 2.

  Press the release tab and remove the coil wire pin.

Courtesy of FORD MOTOR COMPANY

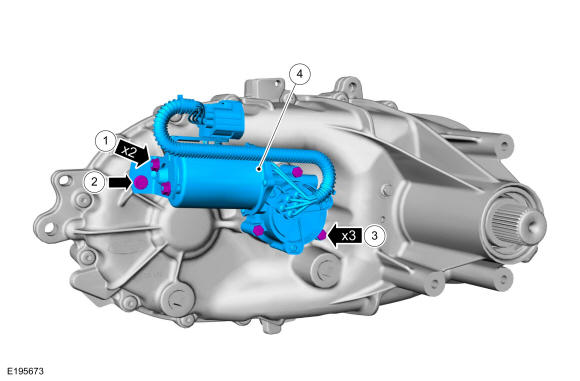

6.
- 1.

  Loosen the transfer case shift motor bracket nuts.
- 2.

  Remove the transfer case shift motor bracket bolt.
- 3.

  Remove the transfer case shift motor bolts.
- 4.

  Remove the transfer case shift motor.

Courtesy of FORD MOTOR COMPANY

7.

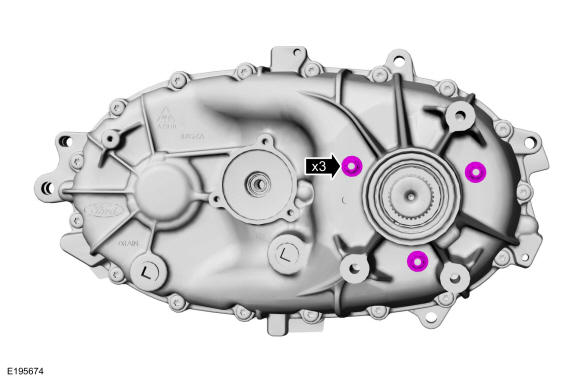

Remove the coil nuts and washers.

Courtesy of FORD MOTOR COMPANY

8.

NOTE: The transfer case bolts are self tapping, and it is normal to find metal shavings while removing the cover.

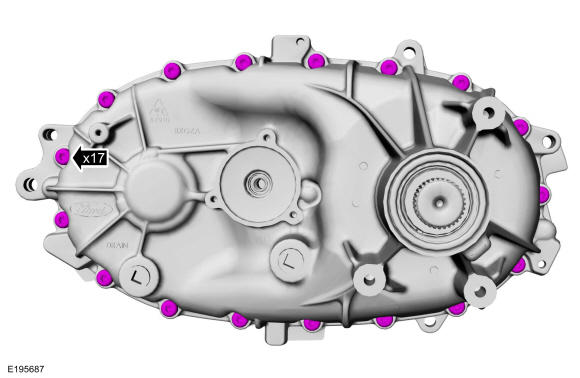

Remove the transfer case bolts.

Courtesy of FORD MOTOR COMPANY

9.

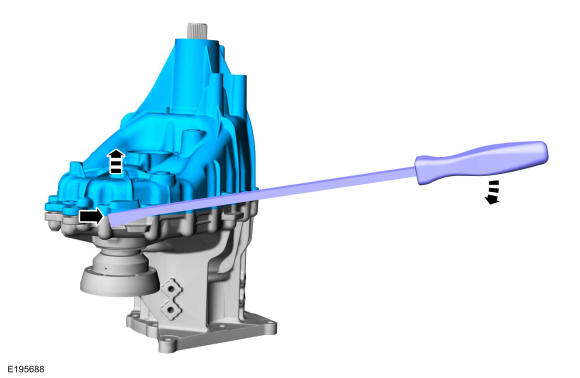

Using the pry bosses, separate the transfer case covers.

Courtesy of FORD MOTOR COMPANY

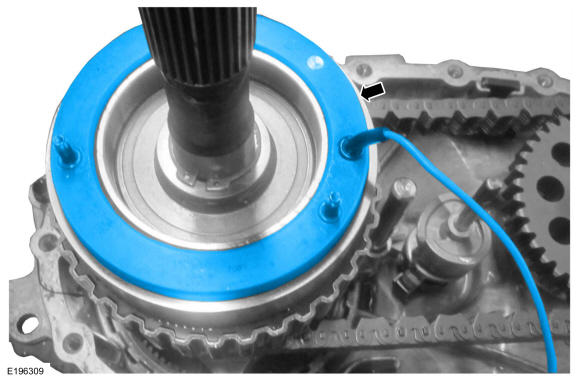

10.

Remove the transfer case field coil.

Courtesy of FORD MOTOR COMPANY

11.

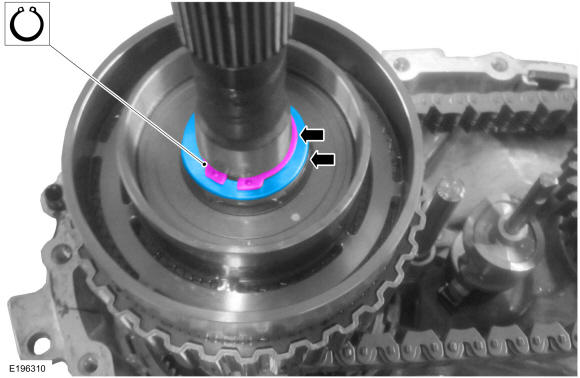

Remove the coil housing snap ring.

Courtesy of FORD MOTOR COMPANY

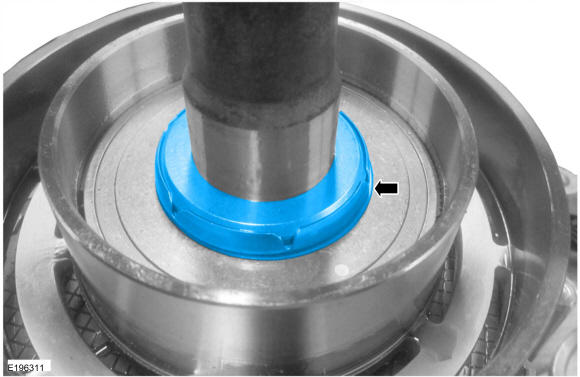

12.

Remove the caged thrust bearing assembly.
- Install a new bearing as necessary.

Courtesy of FORD MOTOR COMPANY

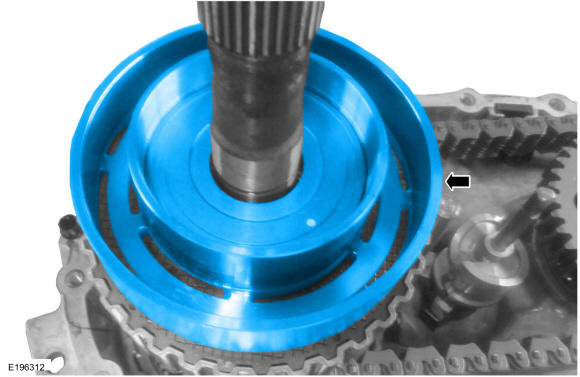

13.

Remove the coil housing.

Courtesy of FORD MOTOR COMPANY

14.

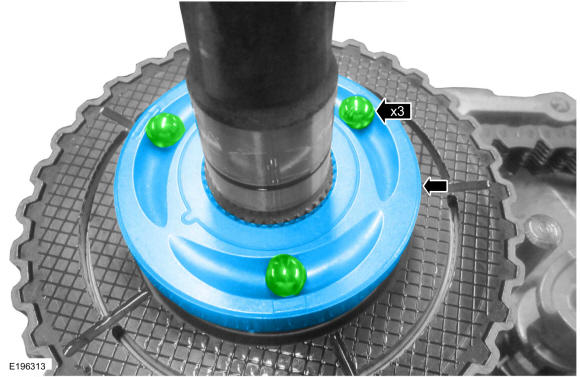

Remove the steel balls and the cam.

Courtesy of FORD MOTOR COMPANY

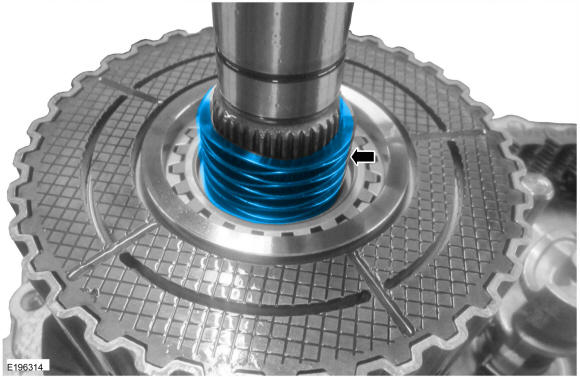

15.

Remove the wave spring.

Courtesy of FORD MOTOR COMPANY

16.

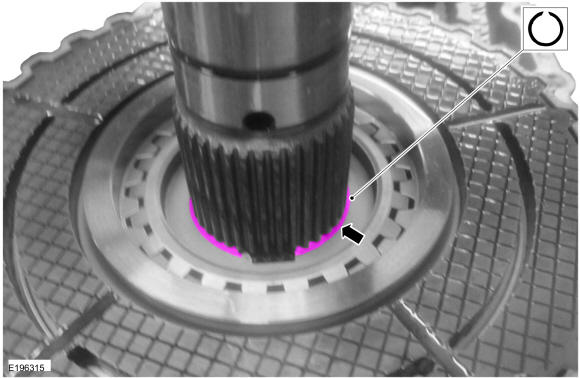

Remove clutch pack circlip.

Courtesy of FORD MOTOR COMPANY

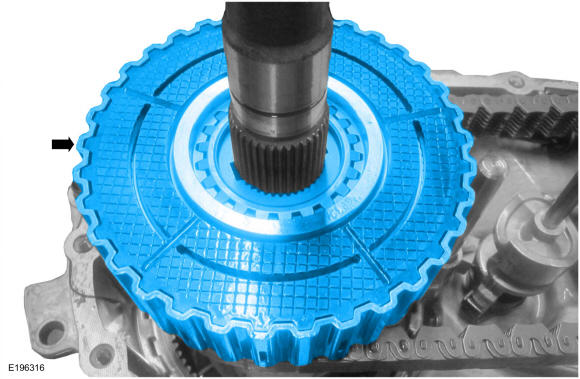

17.

NOTE: When removing the clutch pack assembly, do not separate the clutch pack assembly. Keep tension on the clutch pack during removal. Set the clutch pack assembly on the bench in the same position as located in the transfer case. The thrust washer in the lower clutch pack uses tabs to hold it in place. If the thrust washer is not in place, a transfer case clearance problem will occur.

NOTE: If the clutch pack is disassembled, a new clutch pack and armature must be installed. Failure to install a new clutch pack can result in component failure.

Remove the clutch pack assembly with the armature.

Courtesy of FORD MOTOR COMPANY

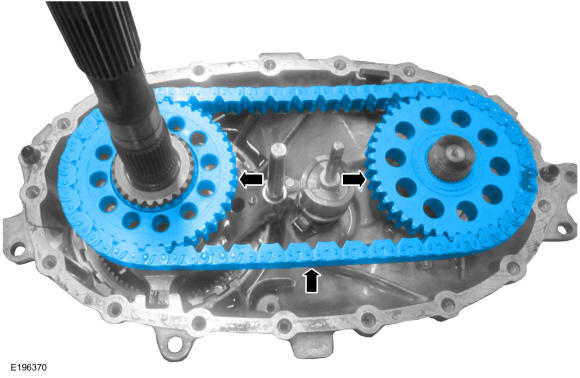

18.

Remove the drive chain and the sprockets as an assembly.
- Install new components as necessary.

Courtesy of FORD MOTOR COMPANY

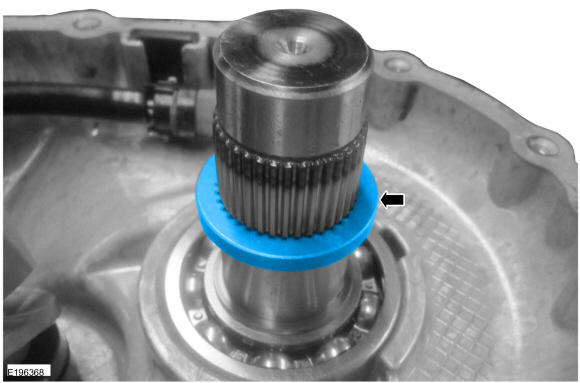

19.

Remove the output shaft sprocket spacer.

Courtesy of FORD MOTOR COMPANY

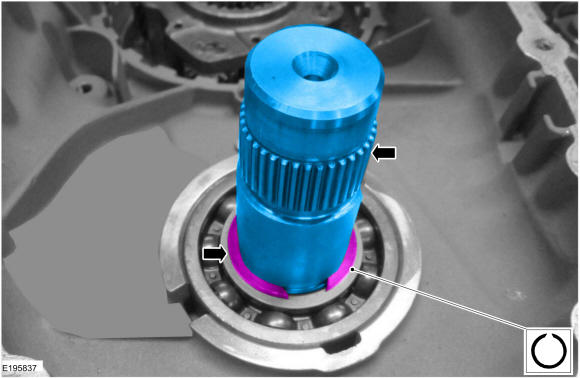

20.

NOTE: Do not let the front output shaft fall while removing the snap ring or damage to the component may occur.

Remove the output shaft circlip and the output shaft.

Courtesy of FORD MOTOR COMPANY

21.

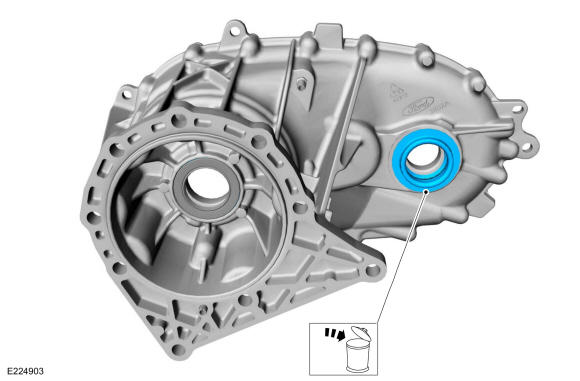

Remove and discard the front output shaft seal.

Courtesy of FORD MOTOR COMPANY

22.

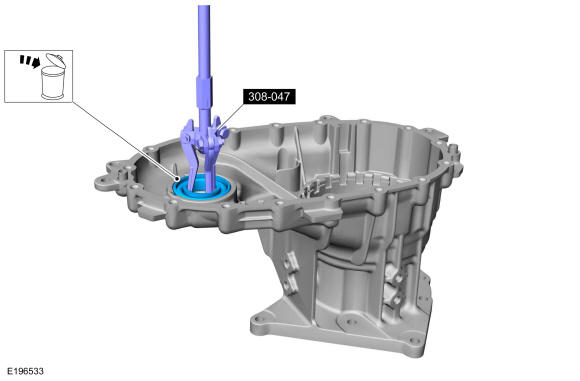

Using the special tool with the Slide Hammer, remove the front output shaft bearing.
Use Special Service Tool: 308-047 (T77F-1102-A) Remover, Bearing Cup.

Use the General Equipment: Slide Hammer

Courtesy of FORD MOTOR COMPANY
