Removal And Installation: Hood: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.

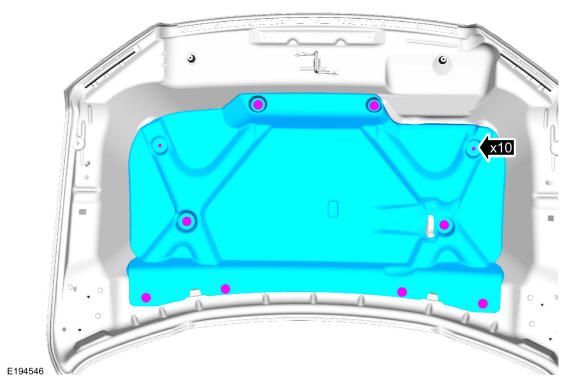

  1. 1.

    NOTE: This step is only necessary when installing a new component.

    Remove the retainers and hood insulation.

GFD42598Courtesy of FORD MOTOR COMPANY

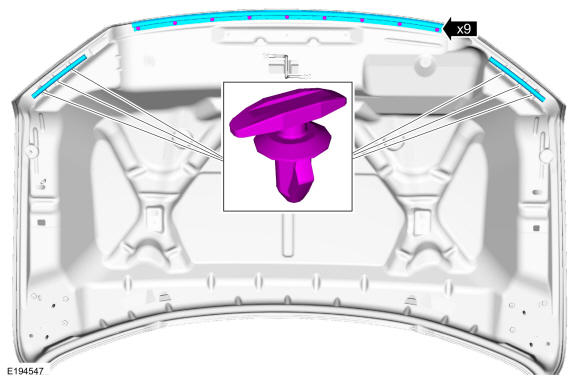

  1. 2.

    NOTE: This step is only necessary when installing a new component.

    Remove the retainers and the hood pad assembly.

GFD42599Courtesy of FORD MOTOR COMPANY

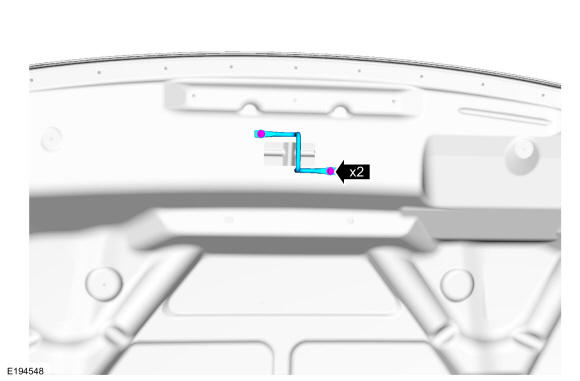

  1. 3.

    NOTE: This step is only necessary when installing a new component.

    Remove the striker latch to hood bolts and the striker latch.

    Torque

    : 106 lb.in (12 Nm)

GFD42600Courtesy of FORD MOTOR COMPANY

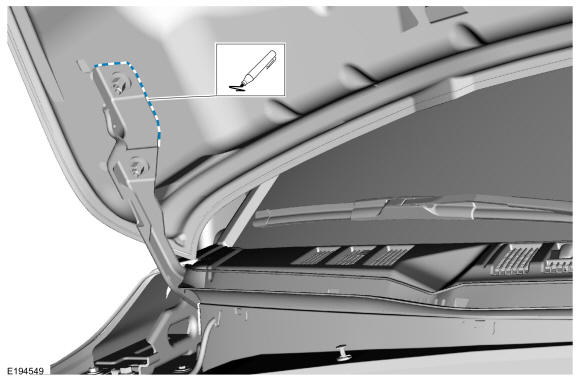

  1. 4.

    NOTE: RH side shown in illustration, LH side similar.

    Index-mark the hood hinge location to aid in hood installation.

GFD42601Courtesy of FORD MOTOR COMPANY

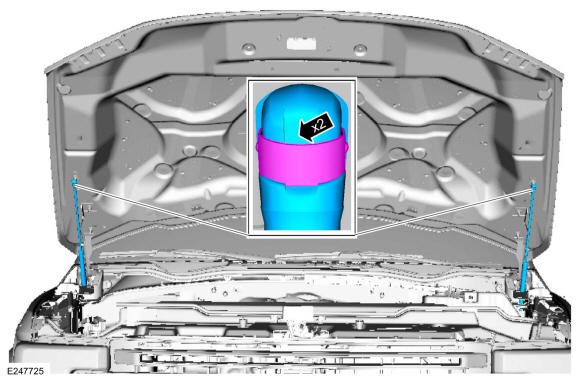

  1. 5.

    NOTE: Support the hood before removing the strut. Failure to follow this direction may result in damage to the components.

    Release the clips and remove the struts.

GFD42602Courtesy of FORD MOTOR COMPANY

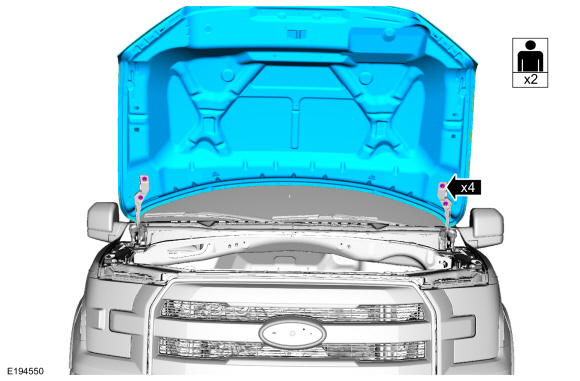

  1. 6.

    NOTE: An assistant is necessary for the removal of the hood.

    Remove the nuts and the hood.

    Torque

    : 18 lb.ft (25 Nm)

GFD42603Courtesy of FORD MOTOR COMPANY
