Removal And Installation: Fender: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: LH side shown in illustration, RH side similar.

1.

Remove the front fender moulding. REFER to: Front Fender Moulding .

2.

Remove the fender splash shield. REFER to: Fender Splash Shield .

3.

Remove the bolt.
Torque

: 80 lb.in (9 Nm)

GFD42584

Courtesy of FORD MOTOR COMPANY

4.

Remove the bolts.
Torque

: 80 lb.in (9 Nm)

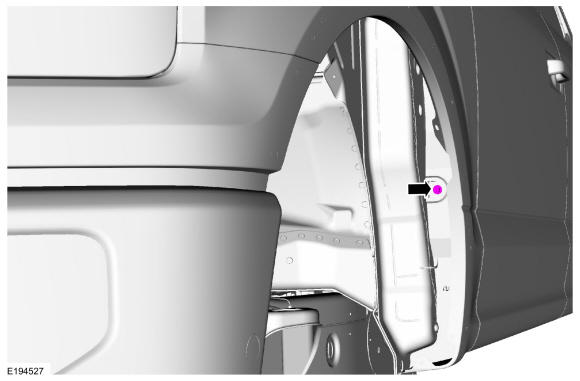

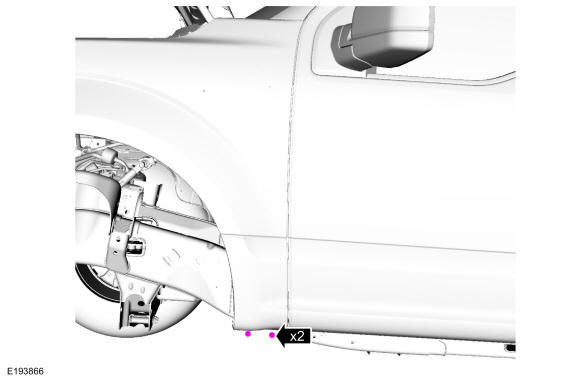

GFD42585

Courtesy of FORD MOTOR COMPANY

5.

Remove the bolt.
Torque

: 44 lb.in (5 Nm)

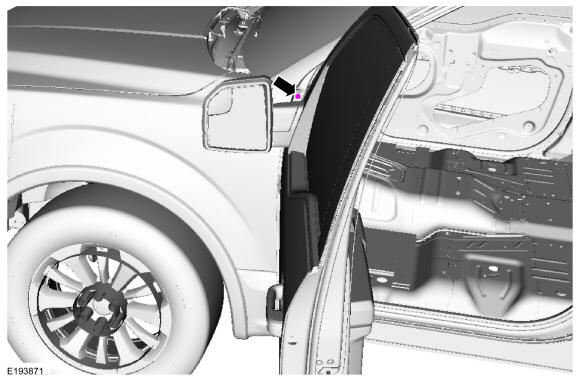

GFD42586

Courtesy of FORD MOTOR COMPANY

6.

Lift the corner of the cowl panel grille and remove the bolt.
Torque

: 80 lb.in (9 Nm)

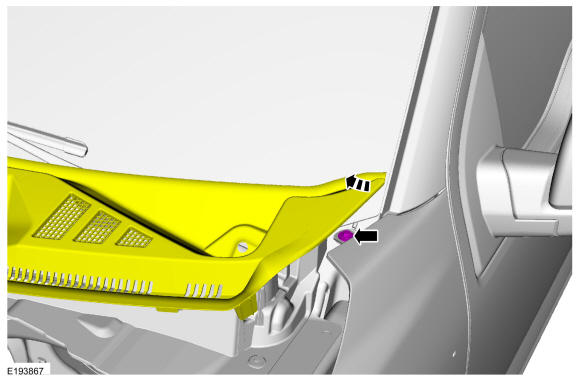

GFD42587

Courtesy of FORD MOTOR COMPANY

7.

Remove the headlamp assembly. REFER to: Headlamp Assembly .

8.

Remove the bolt.
Torque

: 80 lb.in (9 Nm)

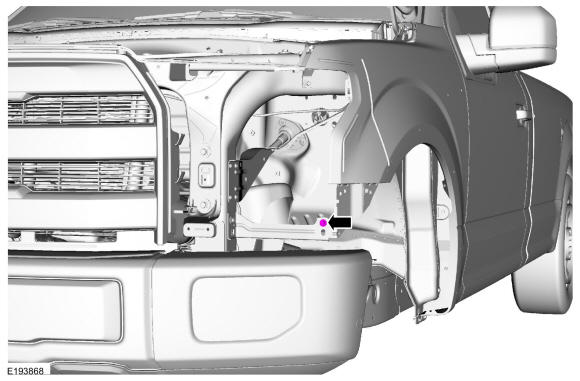

GFD42588

Courtesy of FORD MOTOR COMPANY

9.

Using a knife, cut the foam sealant between the fender and the body.
Use the General Equipment: Knife

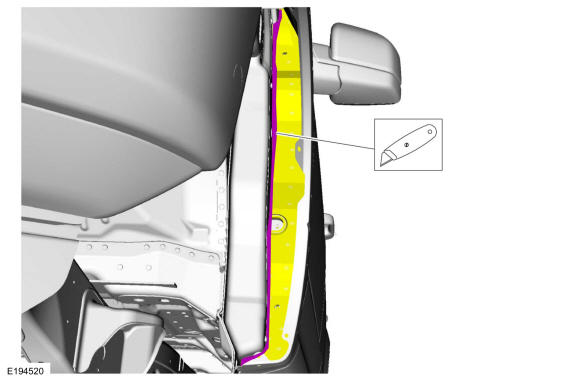

GFD42589

Courtesy of FORD MOTOR COMPANY

10.

Remove the bolts and the fender.
Torque

: 80 lb.in (9 Nm)

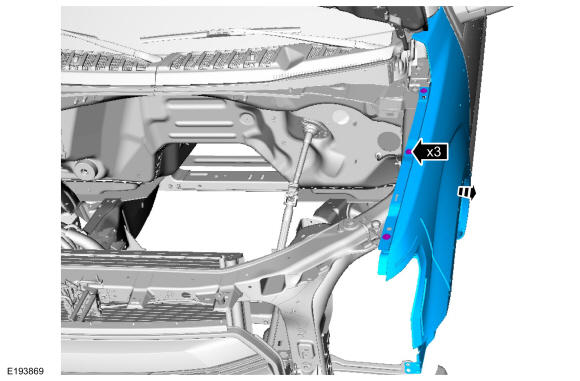

GFD42590

Courtesy of FORD MOTOR COMPANY

11.

NOTE: This step is only necessary when installing a new component.

Remove the push pins and the expandable foam baffle.

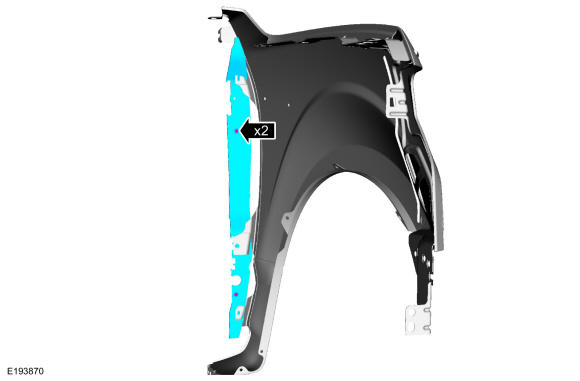

GFD42591

Courtesy of FORD MOTOR COMPANY
