Fender Splash Shield: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: LH side shown in illustration, RH side similar.

  1. 1.

    Remove the wheel and tire. REFER to: Wheel and Tire .

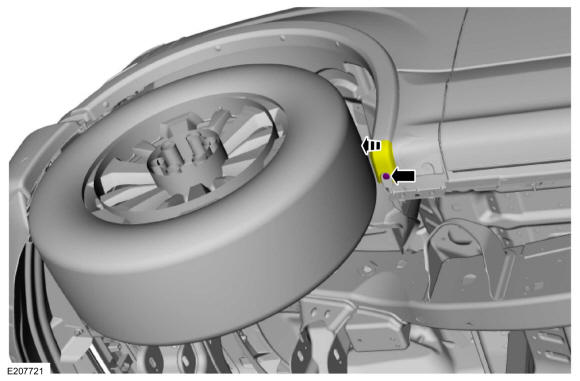

  1. 2.

    If equipped, remove the pin-type retainer and position aside the front fender moulding.
GFD42592Courtesy of FORD MOTOR COMPANY

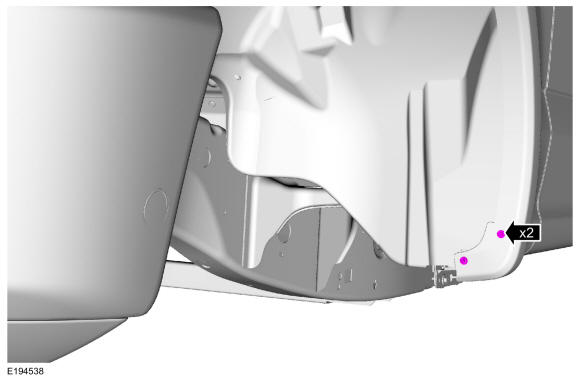

  1. 3.

    Remove the bolts.
GFD42593Courtesy of FORD MOTOR COMPANY

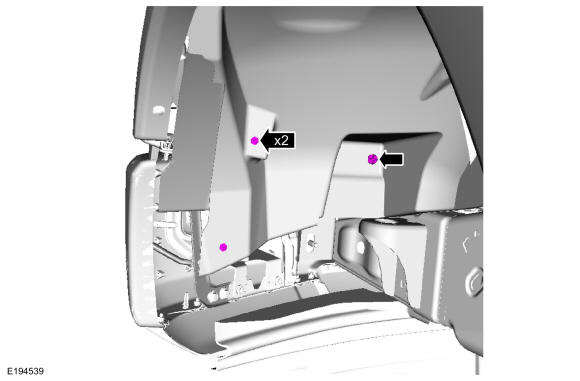

  1. 4.

    Remove the bolts and the pin-type retainer.
GFD42594Courtesy of FORD MOTOR COMPANY

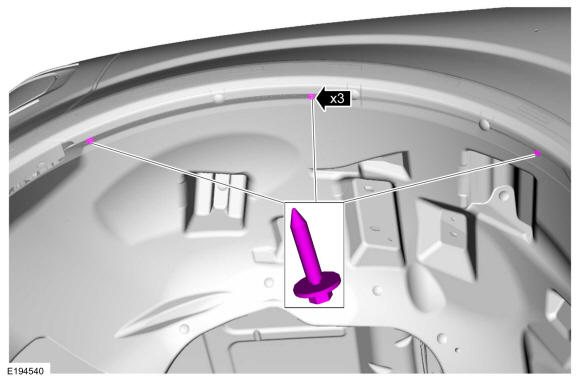

  1. 5.

    Remove the bolts.
GFD42595Courtesy of FORD MOTOR COMPANY

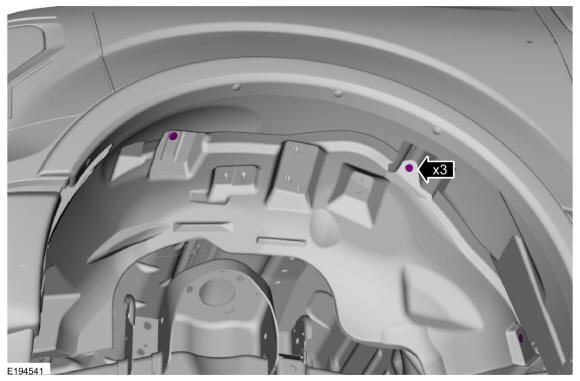

  1. 6.

    Remove the pin-type retainers.
GFD42596Courtesy of FORD MOTOR COMPANY

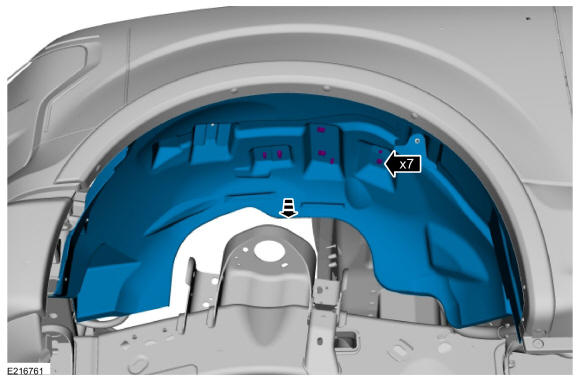

  1. 7.

    NOTE: Pin-type retainers vary based on trim level.

    Remove the electrical pin-type retainers and the fender splash shield.

GFD42597Courtesy of FORD MOTOR COMPANY
