Engine Front Undershield

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD .

1.

NOTE: 4X2 vehicle shown in illustration, 4X4 vehicle similar.

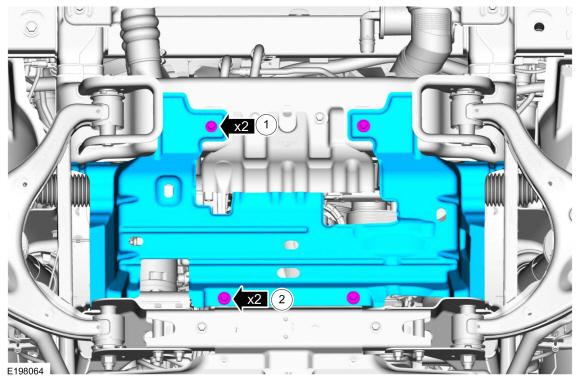

Remove the engine front undershield.
1. 1.

  Remove the bolts.
  Torque

  : 30 lb.ft (40 Nm)
1. 2.

  Remove the bolts and the engine front undershield.
  Torque

  : 71 lb.in (8 Nm)

Courtesy of FORD MOTOR COMPANY
