Cowl Panel: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

1.

Remove the cowl panel grille. REFER to: Cowl Panel Grille .

2.

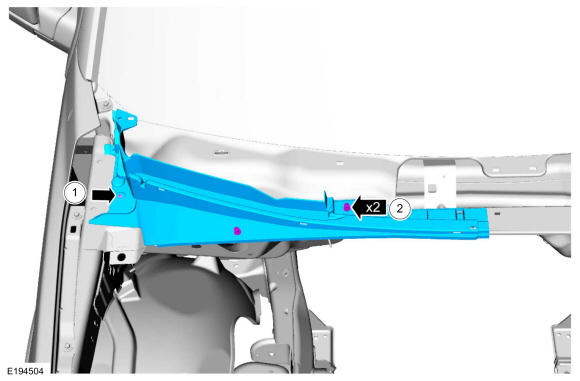

Remove the LH cowl panel.
1. 1.

  Remove the screw.
1. 2.

  Remove the pin-type retainers and the LH cowl panel.

Courtesy of FORD MOTOR COMPANY

3.

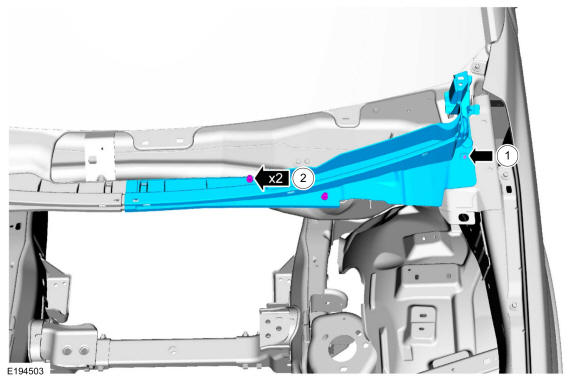

Remove the RH cowl panel.
1. 1.

  Remove the screw.
1. 2.

  Remove the pin-type retainers and the RH cowl panel.

Courtesy of FORD MOTOR COMPANY
