Cowl Panel Grille: Removal
WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
Both sides
- 1.
Remove the wiper pivot arm. REFER to: Windshield Wiper Pivot Arm
.
LH side
- 2.

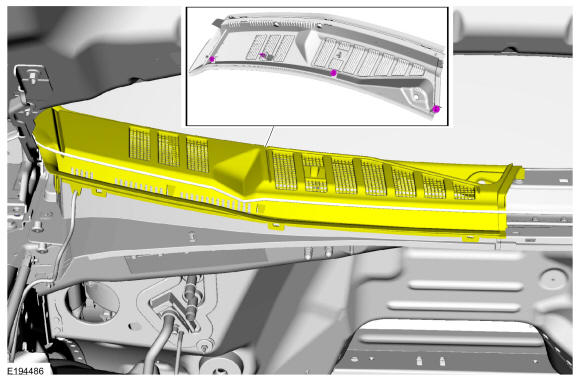

Lift the cowl trim panel to release the underside pin-type retainers.
 Courtesy of FORD MOTOR COMPANY
|
- 3.

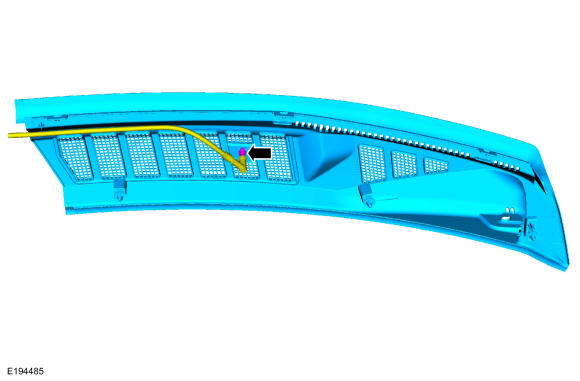

Disconnect the windshield washer tube and remove the cowl panel grille.
 Courtesy of FORD MOTOR COMPANY
|
RH side
- 4.

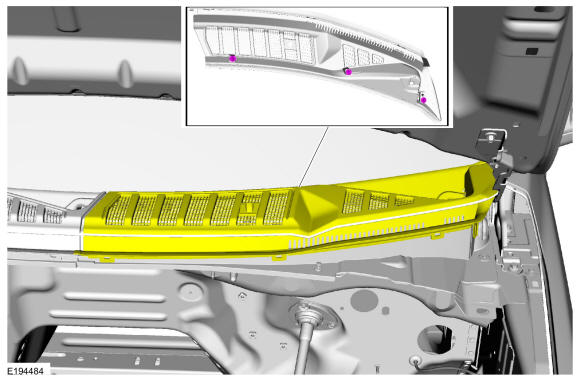

Lift the cowl trim panel to release the underside pin-type retainers.
 Courtesy of FORD MOTOR COMPANY
|
- 5.

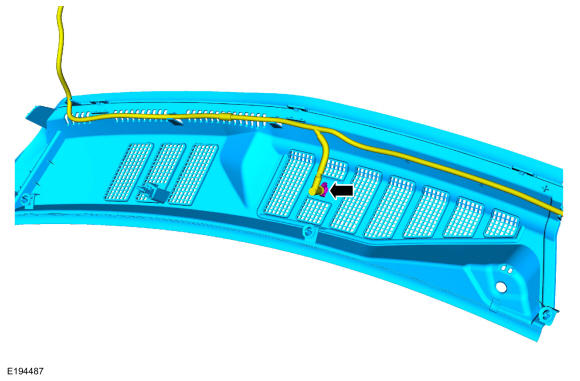

Disconnect the windshield washer tube and remove the cowl panel grille.
 Courtesy of FORD MOTOR COMPANY
|
