Active Grille Shutter: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Upper active grille shutter

1.

Remove the radiator grille. REFER to: Radiator Grille .

2.

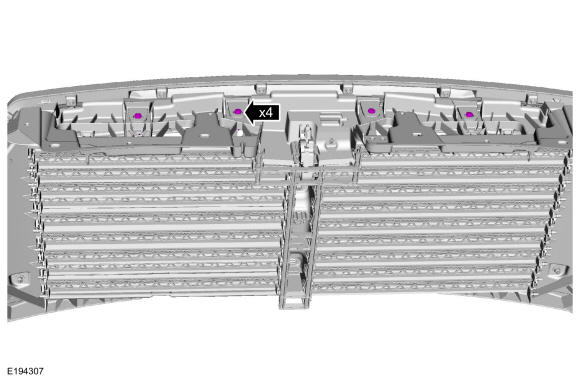

Remove the pin-type retainers.

GFD42564

Courtesy of FORD MOTOR COMPANY

3.

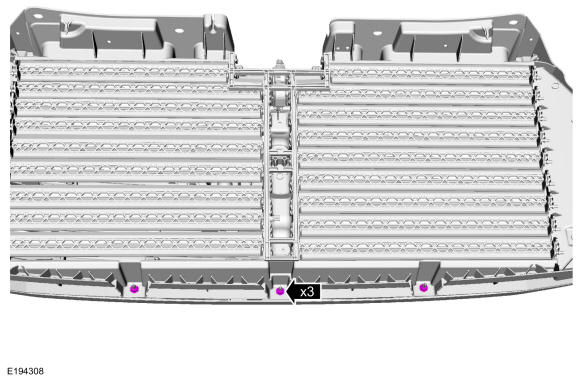

Remove the nuts.

GFD42565

Courtesy of FORD MOTOR COMPANY

4.

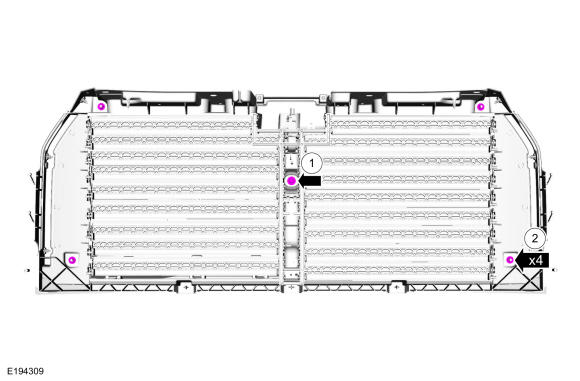

1. 1.

  Remove the screw.
1. 2.

  Remove the nuts.

GFD42566

Courtesy of FORD MOTOR COMPANY

5.

NOTE: If equipped with front camera, disconnect the camera and the washer hose.

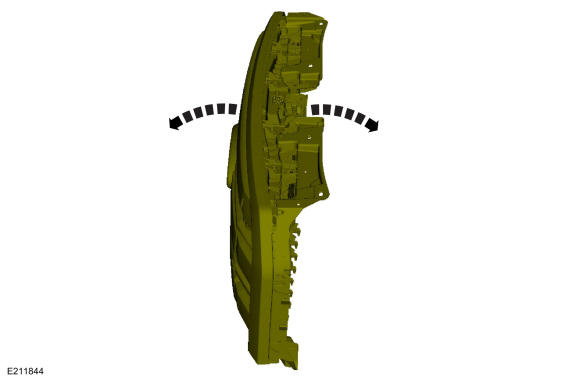

Separate the active grille shutter from the radiator grille.

GFD42567

Courtesy of FORD MOTOR COMPANY

6.

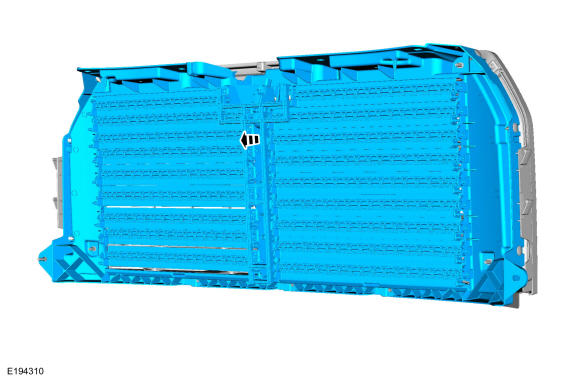

Remove the upper active grille shutter.

GFD42568

Courtesy of FORD MOTOR COMPANY

7.

NOTE: If equipped with front camera, remove the wire harness and the washer hose.

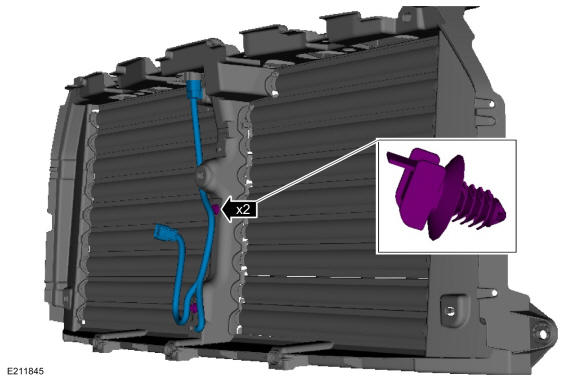

Remove the pin-type retainers and the wire harness.

GFD42569

Courtesy of FORD MOTOR COMPANY

Lower active grille shutter

8.

Remove the front bumper. REFER to: Front Bumper .

9.

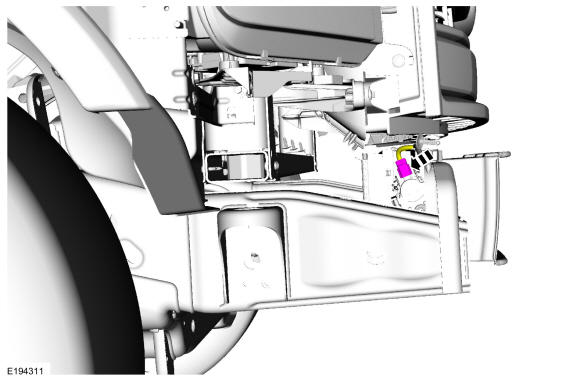

Disconnect the active grille actuator electrical connector.

GFD42570

Courtesy of FORD MOTOR COMPANY

10.

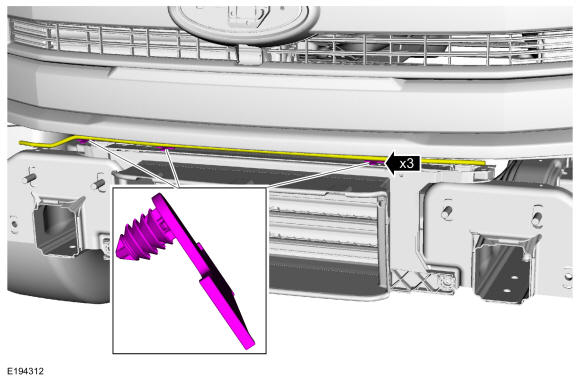

Remove the pin-type retainers and position aside the wire harness.

GFD42571

Courtesy of FORD MOTOR COMPANY

11.

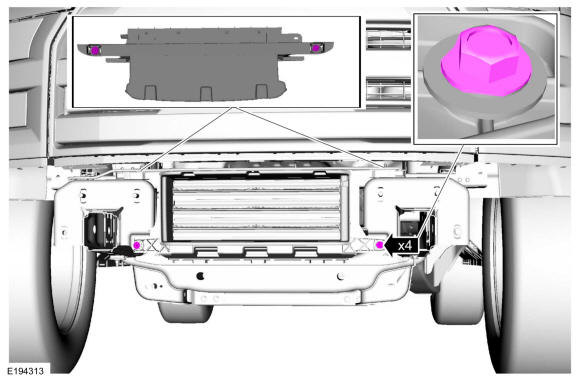

Remove the bolts.
Torque

: 62 lb.in (7 Nm)

GFD42572

Courtesy of FORD MOTOR COMPANY

12.

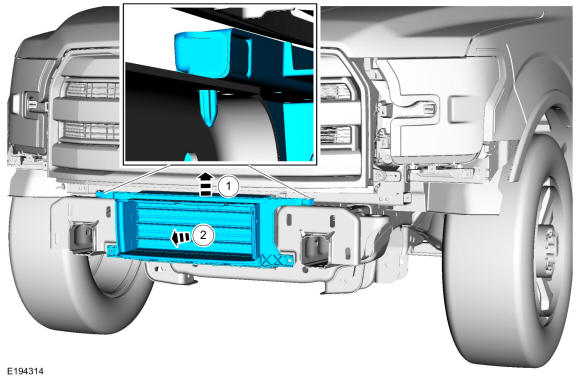

Remove the lower active grille shutter.
1. 1.

  Lift up the lower active grill shutter.
1. 2.

  Pull out and remove the lower active grille shutter.

GFD42573

Courtesy of FORD MOTOR COMPANY
