Active Grille Shutter Actuator: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Upper active grille shutter actuator

1.

Remove the radiator grille. REFER to: Radiator Grille .

2.

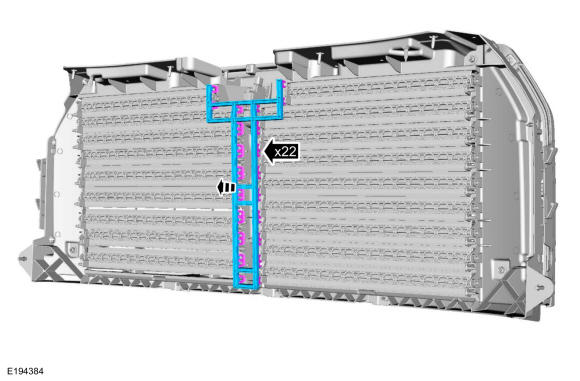

Release the clips, and remove the linkage.

Courtesy of FORD MOTOR COMPANY

3.

NOTE: The upper active grille shutter actuator is not interchangeable with the lower active grill shutter actuator. Do not attempt to replace one actuator with the other.

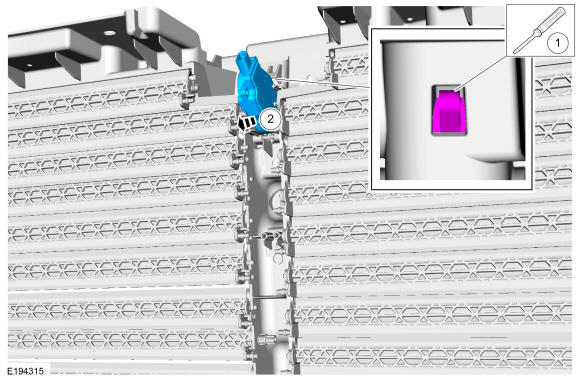

Using a screwdriver, push down on the clip and remove the upper active grille shutter actuator.

Courtesy of FORD MOTOR COMPANY

Lower active grille shutter actuator

4.

Remove the front bumper. REFER to: Front Bumper (501-19 Bumpers, Removal and Installation).

5.

Disconnect the electrical connector.

Courtesy of FORD MOTOR COMPANY

6.

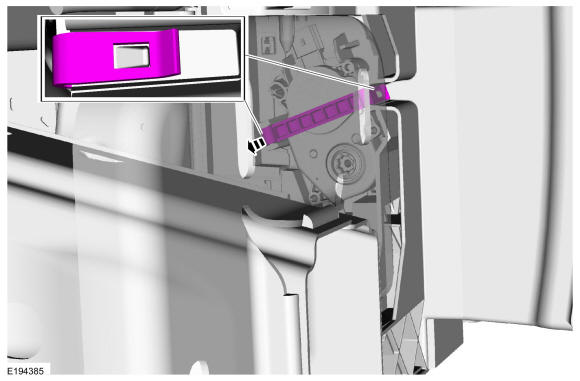

Remove the clip.

Courtesy of FORD MOTOR COMPANY

7.

NOTE: The upper active grille shutter actuator is not interchangeable with the lower active grill shutter actuator. Do not attempt to replace one actuator with the other.

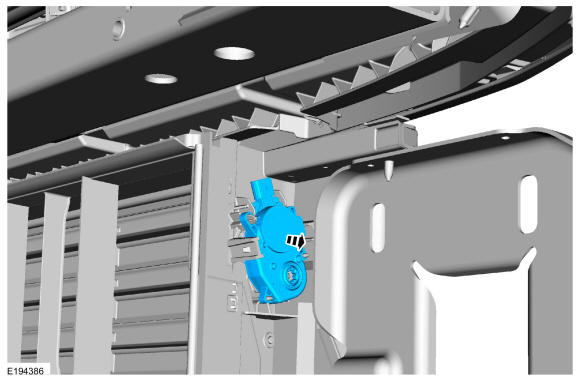

Remove the lower active grille shutter actuator.

Courtesy of FORD MOTOR COMPANY
