Front Impact Severity Sensor: Notes

WARNING: This page is about a different car, the 2012 Ford Pickup, 2012 Ford F550 Super Duty, 2012 Ford F450 Super Duty, and 2012 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

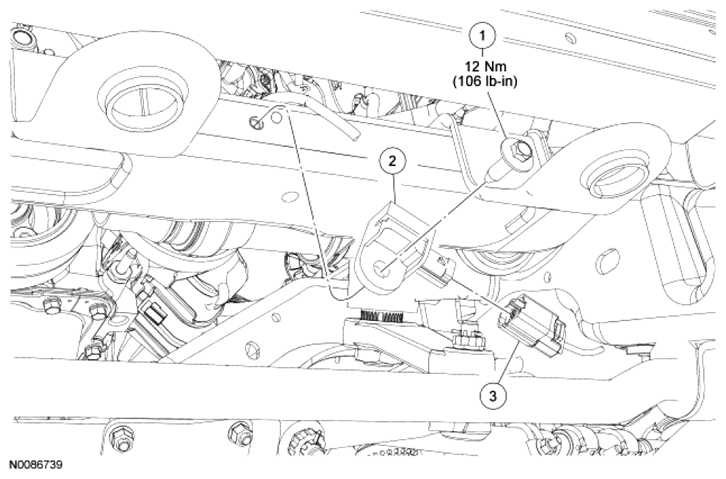

Fig 1: Front Impact Severity Sensor Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W505256	Front impact severity sensor bolt
2	14B006	Front impact severity sensor
3	-	Front impact severity sensor electrical connector (part of 12A581)
