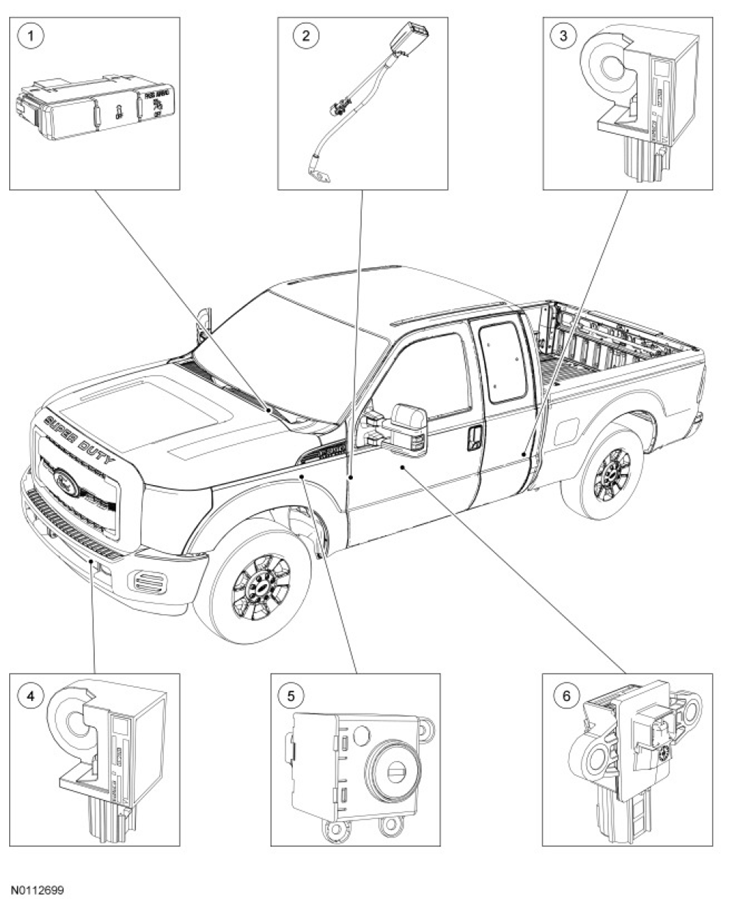

Supplemental Restraint System (SRS) Components (Illustration 1 of 2)
WARNING: This page is about a different car, the 2012 Ford Pickup, 2012 Ford F550 Super Duty, 2012 Ford F450 Super Duty, and 2012 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
SuperCab shown in illustration, other cab styles similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 13D730 | Passenger Air Bag Deactivation (PAD) indicator (if equipped) |
| 2 | 2561203 | Driver seat safety belt buckle and switch assembly |
| 3 | 14B345 | Second row side impact severity sensor (SuperCab and Crew Cab vehicles only) (vehicles equipped with side air bag and Safety Canopy® only) (if equipped) |
| 4 | 14B345 | Front impact severity sensor (if equipped) |
| 5 | 14B268 | Passenger Air Bag Deactivation (PAD) switch (if equipped) |
| 6 | 14B345 | Front door side impact sensor (pressure-based sensor) (vehicles equipped with side air bag and Safety Canopy® only) |
