Transmission Fluid Cooler Tubes - 5.0L 32V Ti-VCT: Installation

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

1.

If necessary, remove the transmission fluid cooler tubes backing rings and band seals from the transmission fluid warmer and the cooler bypass valve.

Courtesy of FORD MOTOR COMPANY

2.

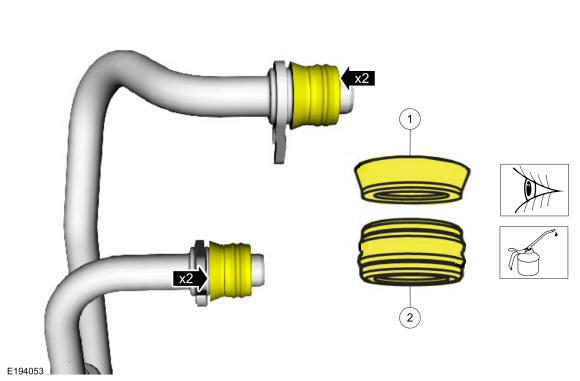

Inspect and lubricate the band seals and backing rings. Install new band seals and backing rings if necessary.
1. 1.

  Backing ring (7J324).
1. 2.

  Seal (7D285).
  Material

  : Motorcraft® MERCON® LV Automatic Transmission Fluid / XT-10-QLVC (MERCON® LV) (WSS-M2C938-A)

Courtesy of FORD MOTOR COMPANY

3.

Inspect the transmission fluid cooler O-ring seals. Install new O-ring seals if necessary.

Courtesy of FORD MOTOR COMPANY

4.

Install the transmission fluid cooler tubes and the studbolt.
Torque

: 22 lb.ft (30 Nm)

Courtesy of FORD MOTOR COMPANY

5.

NOTE: 4WD shield shown in illustration, 2WD shield similar.

Install the heat shield and the nut.

Torque

: 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY

6.

Install the transmission fluid cooler tubes bracket-to-transmission bolt.
Torque

: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY

7.

Install the transmission fluid cooler tubes bracket-to-engine nut.
Torque

: 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY

8.

Connect the transmission fluid cooler tubes from the transmission fluid warmer and the cooler bypass valve and install the bolts.
Torque

: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

9.

Install the crossmember, the bolts and the nuts.
Torque

: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY

NOTE: Vehicles are equipped with either a splash shield or a skid plate.

10.

If equipped, install the splash shield, the pushpins, and the bolts.
Torque

: 22 lb.ft (30 Nm)

Courtesy of FORD MOTOR COMPANY

11.

If equipped, install the skid plate and the bolts.
Torque

: 22 lb.ft (30 Nm)

Courtesy of FORD MOTOR COMPANY

12.

If equipped, install the transmission shield, turn the 1/4 turn retainer and install the bolts.
Torque

: 62 lb.in (7 Nm)

Courtesy of FORD MOTOR COMPANY

13.

Check and fill the transmission fluid as necessary. REFER to: Transmission Fluid Level Check .
