Transmission Fluid Cooler Tubes - 3.5L EcoBoost (272kW/370PS): Removal
WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- 1.
With the vehicle in NEUTRAL, position it on a hoist. REFER to: Jacking and Lifting - Overview
.
- 2.
If equipped, remove the bolts, turn the 1/4 turn retainer and remove the transmission shield.
 Courtesy of FORD MOTOR COMPANY
|
NOTE:
Vehicles are equipped with either a skid plate or a splash shield.
- 3.
If equipped, remove the bolts and the skid plate.
 Courtesy of FORD MOTOR COMPANY
|
- 4.
If equipped, remove the pushpins, the bolts and the splash shield.
 Courtesy of FORD MOTOR COMPANY
|
- 5.
Remove the transmission fluid cooler tube secondary latches.
 Courtesy of FORD MOTOR COMPANY
|
- 6.

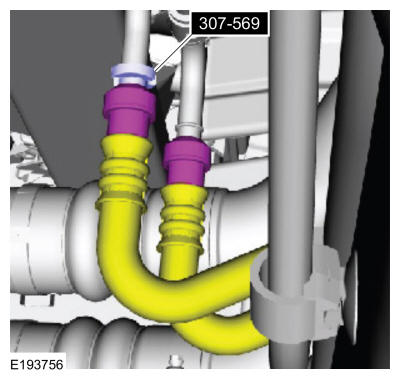

Using the special tool, disconnect the transmission fluid cooler tube quick connect couplings.Use Special Service Tool: 307-569 Disconnect Tool TOC Line (1/2).
 Courtesy of FORD MOTOR COMPANY
|
- 7.
Remove the transmission fluid cooler tubes bracket-to-engine nut.
 Courtesy of FORD MOTOR COMPANY
|
- 8.
Remove the transmission fluid cooler tubes bracket-to-transmission nut.
 Courtesy of FORD MOTOR COMPANY
|
- 9.
NOTE:
4WD shield shown in illustration, 2WD shield similar.
Remove the nut and the heat shield.
 Courtesy of FORD MOTOR COMPANY
|
- 10.

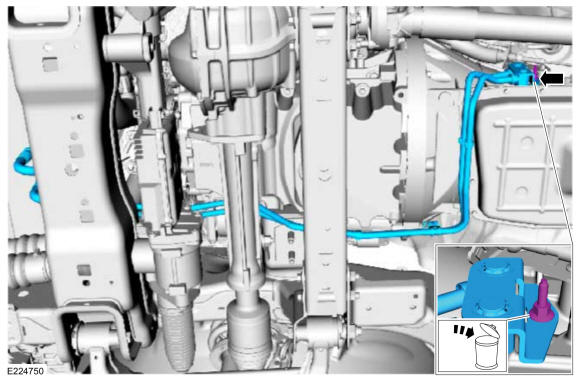

Remove and discard the studbolt and remove the transmission fluid cooler tubes.
 Courtesy of FORD MOTOR COMPANY
|
