Transmission Fluid Cooler Tubes - 3.5L Duratec (209kW/284PS): Installation

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

1.

Inspect the transmission fluid cooler O-ring seals. Install new O-ring seals if necessary.

Courtesy of FORD MOTOR COMPANY

2.

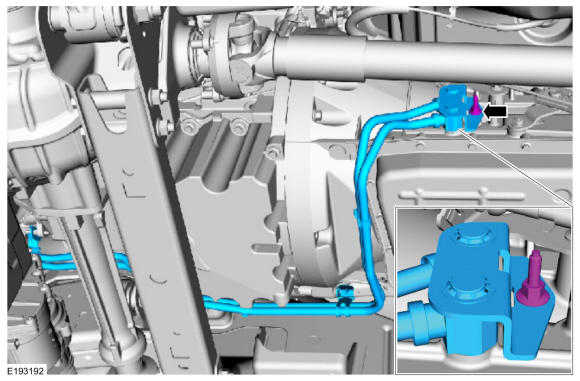

Position the transmission fluid cooler tubes in the vehicle and install a new stud bolt.
Torque

: 22 lb.ft (30 Nm)

Courtesy of FORD MOTOR COMPANY

3.

NOTE: 4WD shield shown in illustration, 2WD shield similar.

Position the heat shield and install the nut.

Torque

: 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY

4.

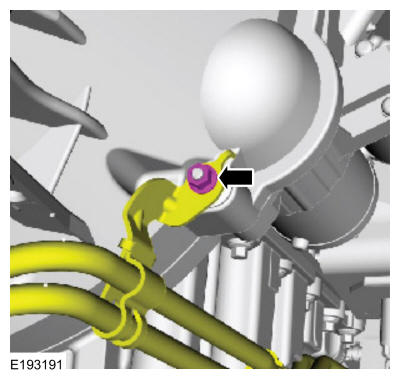

Install the transmission fluid cooler tubes bracket-to-transmission nut.
Torque

: 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY

5.

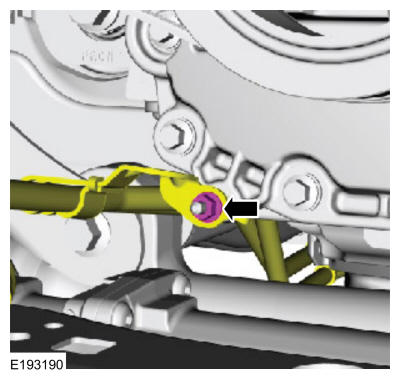

Install the transmission fluid cooler tubes bracket-to-engine nut.
Torque

: 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY

6.

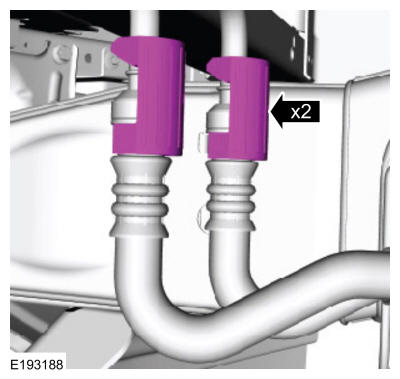

Connect the transmission fluid cooler tubes quick connect couplings.

Courtesy of FORD MOTOR COMPANY

7.

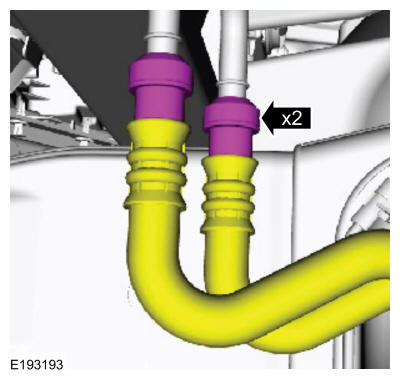

Install the transmission fluid cooler tube secondary latches.

Courtesy of FORD MOTOR COMPANY

NOTE: Vehicles are equipped with either a splash shield or a skid plate.

8.

If equipped, install the splash shield remove the pushpins, the bolts and the splash shield.
Torque

: 22 lb.ft (30 Nm)

Courtesy of FORD MOTOR COMPANY

9.

If equipped, install the skid plate and the bolts.
Torque

: 22 lb.ft (30 Nm)

Courtesy of FORD MOTOR COMPANY

10.

If equipped, install the transmission shield, turn the 1/4 turn retainer and install the bolts.
Torque

: 62 lb.in (7 Nm)

Courtesy of FORD MOTOR COMPANY

11.

Check and fill the transmission fluid as necessary. REFER to: Transmission Fluid Level Check .
