Transmission Fluid Cooler Supply Tube - 5.0L 32V Ti-VCT: Removal

All vehicles

1. 1.

   With the vehicle in NEUTRAL, position it on a hoist. REFER to: Jacking and Lifting - Overview .

1. 2.


   NOTE: Be prepared to collect escaping fluid.

   Remove the bolt, rotate the bracket and disconnect the transmission fluid cooler supply tube from the cooler bypass valve.

Courtesy of FORD MOTOR COMPANY

1. 3.

   If necessary, remove the transmission cooler return tube backing ring and band seal from the cooler bypass valve.

Courtesy of FORD MOTOR COMPANY

1. 4.

   Remove the LH headlamp assembly. REFER to: Headlamp Assembly .

1. 5.

   Remove the pushpins and the radiator site shield.

Courtesy of FORD MOTOR COMPANY

1. 6.

   Remove the pushpins and the LH air deflector.

Courtesy of FORD MOTOR COMPANY

Vehicles without an auxiliary cooler

1. 7.

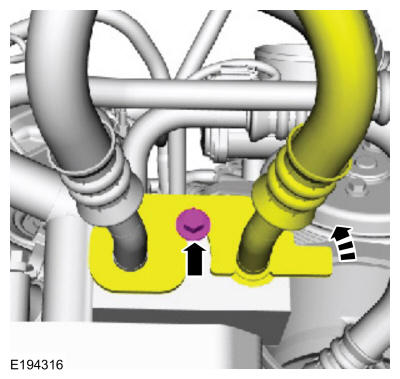

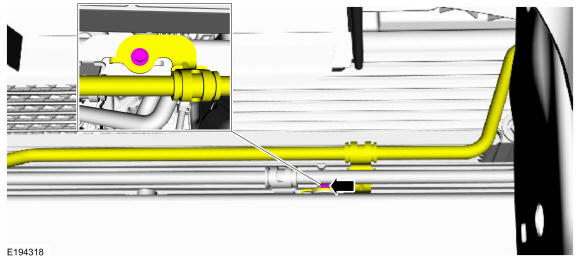

   Remove the supply and return tube bracket bolt.

Courtesy of FORD MOTOR COMPANY

1. 8.

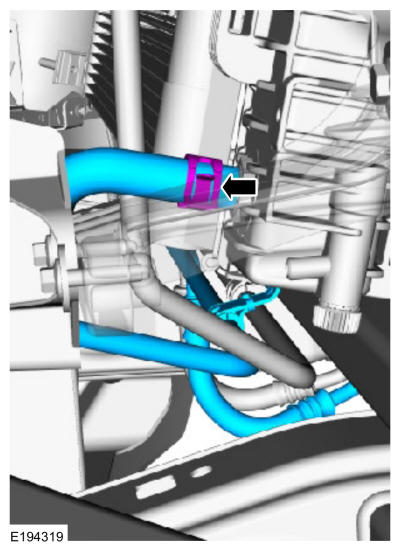

   Release the clamp and remove the transmission fluid cooler supply tube.

Courtesy of FORD MOTOR COMPANY

Vehicles with an auxiliary cooler

1. 9.

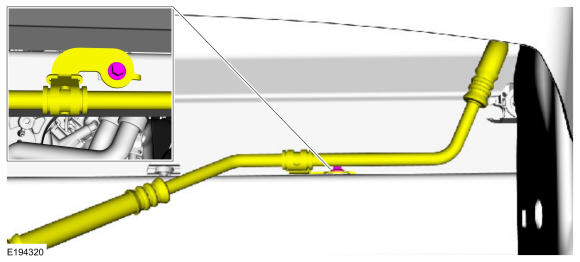

   Remove the supply tube bracket bolt.

Courtesy of FORD MOTOR COMPANY

1. 10.

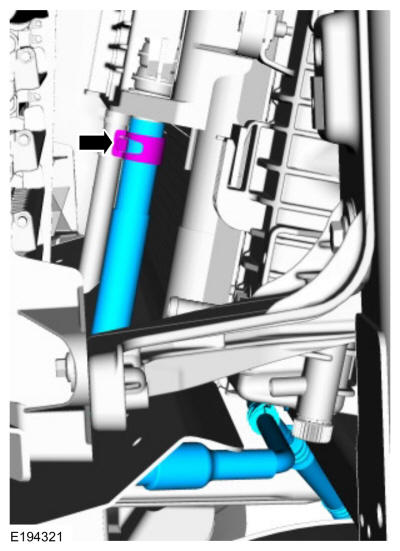

   Release the clamp and remove the transmission fluid cooler supply tube.

Courtesy of FORD MOTOR COMPANY
