Transmission Fluid Cooler Supply Tube - 5.0L 32V Ti-VCT: Installation

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Vehicles with an auxiliary cooler

1.

Install the transmission fluid cooler supply tube and position the clamp.

Courtesy of FORD MOTOR COMPANY

2.

Install the supply tube bracket bolt.
Torque

: 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY

Vehicles without an auxiliary cooler

3.

Install the transmission fluid cooler supply tube and position the clamp.

Courtesy of FORD MOTOR COMPANY

4.

Install the supply and return tube bracket bolt.
Torque

: 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY

All vehicles

5.

Install the LH air deflector and the pushpins.

Courtesy of FORD MOTOR COMPANY

6.

Install the radiator site shield and the pushpins.

Courtesy of FORD MOTOR COMPANY

7.

Install the LH headlamp assembly. REFER to: Headlamp Assembly .

8.

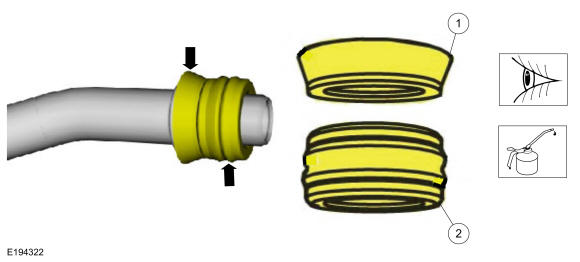

Inspect and lubricate the band seals and backing rings. Install new band seals and backing rings if necessary.
1. 1.

  Backing ring (7J324).
1. 2.

  Seal (7D285).
  Material

  : Motorcraft® MERCON® LV Automatic Transmission Fluid / XT-10-QLVC (MERCON® LV) (WSS-M2C938-A)

Courtesy of FORD MOTOR COMPANY

9.

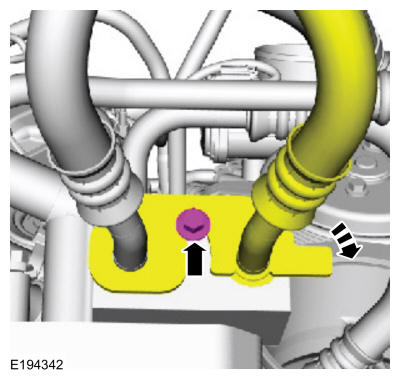

Connect the transmission fluid cooler supply tube to the cooler bypass valve, rotate the bracket and install the bolt.
Torque

: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

10.

Check and fill the transmission fluid as necessary. REFER to: Transmission Fluid Level Check .
