Transmission Fluid Cooler Supply Tube - 3.5L Duratec (209kW/284PS): Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

1.

With the vehicle in NEUTRAL, position it on a hoist. REFER to: Jacking and Lifting - Overview .

2.

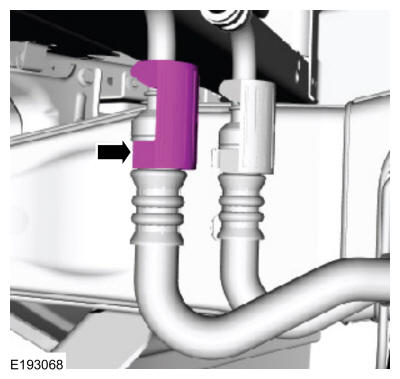

Remove the transmission fluid cooler supply tube secondary latch.

GFD41865

Courtesy of FORD MOTOR COMPANY

3.

NOTE: Be prepared to collect escaping fluid.

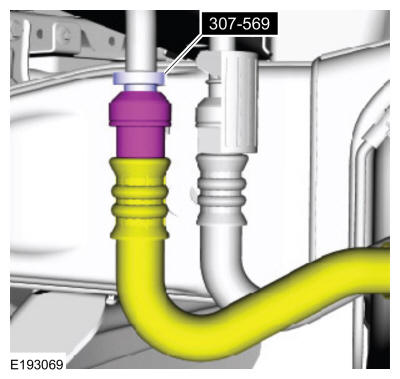

Using the special tool, disconnect the transmission fluid cooler supply tube quick connect fitting.

Use Special Service Tool: 307-569 Disconnect Tool TOC Line (1/2).

GFD41866

Courtesy of FORD MOTOR COMPANY

4.

Remove the supply and return tube bracket bolt.
Torque

: 80 lb.in (9 Nm)

GFD41862

Courtesy of FORD MOTOR COMPANY

5.

Remove the air cleaner. REFER to: AIR CLEANER .

6.

Disconnect the transmission fluid cooler return tube retainer from the transmission fluid cooler supply tube bracket and remove the bracket bolt.
Torque

: 62 lb.in (7 Nm)

GFD41863

Courtesy of FORD MOTOR COMPANY

7.

Remove the LH headlamp assembly. REFER to: Headlamp Assembly .

8.

Remove the pushpins and the radiator site shield.

GFD41847

Courtesy of FORD MOTOR COMPANY

9.

Remove the pushpins and the LH air deflector.

GFD41848

Courtesy of FORD MOTOR COMPANY

10.

NOTE: Be prepared to collect escaping fluid.

NOTE: Vehicles without auxiliary transmission fluid cooler shown in illustration, vehicle with auxiliary transmission fluid cooler similar.

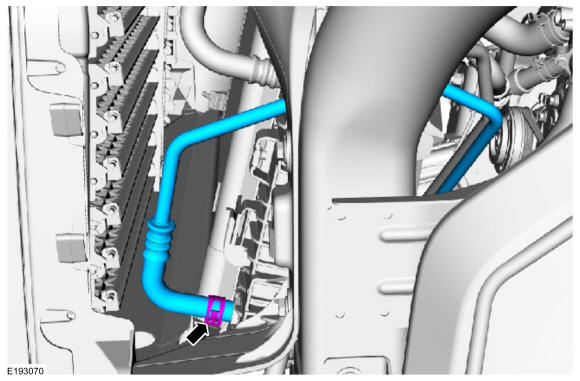

Release the clamp, disconnect and remove the transmission fluid cooler supply tube.

GFD41867

Courtesy of FORD MOTOR COMPANY
