Transmission Fluid Cooler Hoses - 2.7L EcoBoost (238kW/324PS): Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

1.

Remove the active grille shutter. REFER to: Active Grille Shutter .

2.

Remove the transmission fluid cooler hose.

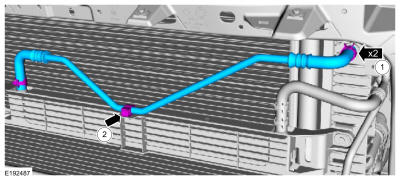

1. 1.

  NOTE: Be prepared to collect escaping fluid.

  Release the clamps and disconnect the hose from the radiator and the auxiliary cooler.
1. 2.

  Disconnect the retainer from the auxiliary cooler and remove the hose.
