Transmission Fluid Auxiliary Cooler - 5.0L 32V Ti-VCT: Removal
WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- 1.
Remove the radiator grille. REFER to: Radiator Grille .
- 2.NOTE: Be prepared to collect escaping fluid.

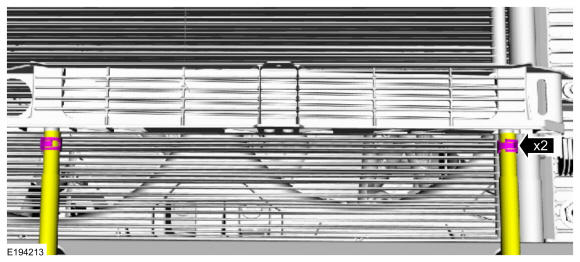

Release the clamps and disconnect the transmission fluid cooler supply and return tubes from the auxiliary cooler.
