Transmission Fluid Auxiliary Cooler - 2.7L EcoBoost (238kW/324PS): Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

1.

Remove the radiator grille. REFER to: Radiator Grille .

2.

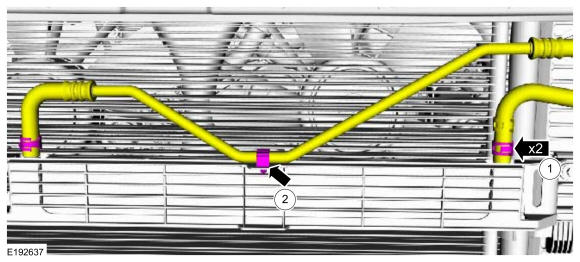

Disconnect the transmission fluid cooler hoses.
1. 1.

  NOTE: Be prepared to collect escaping fluid.

  Release the clamps and disconnect the hoses from the transmission fluid auxiliary cooler.
1. 2.

  Disconnect the transmission fluid cooler hose retainer.

Courtesy of FORD MOTOR COMPANY

3.

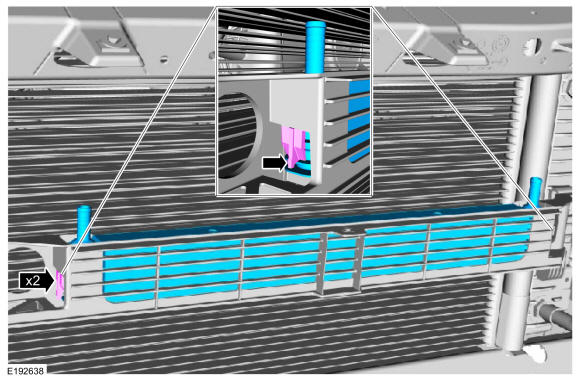

Unclip and remove the transmission fluid auxiliary cooler.

Courtesy of FORD MOTOR COMPANY
