Cooler Bypass Valve - 5.0L 32V Ti-VCT: Installation

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

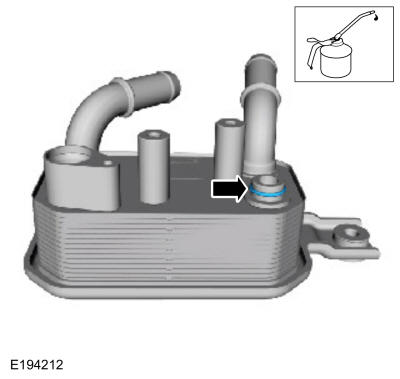

1.

Install and lubricate a new cooler bypass valve O-ring seal.
Material

: Motorcraft® MERCON® LV Automatic Transmission Fluid / XT-10-QLVC (MERCON® LV) (WSS-M2C938-A)

Courtesy of FORD MOTOR COMPANY

2.

Install the cooler bypass valve and the bolts.
Torque

: 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY

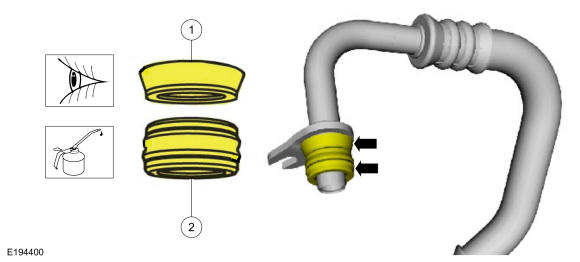

3.

Inspect and lubricate the band seal and backing ring. Install a new band seal and backing ring if necessary.
1. 1.

  Backing ring (7J324).
1. 2.

  Seal (7D285).
  Material

  : Motorcraft® MERCON® LV Automatic Transmission Fluid / XT-10-QLVC (MERCON® LV) (WSS-M2C938-A)

Courtesy of FORD MOTOR COMPANY

4.

Connect the transmission fluid cooler tube to the cooler bypass valve and install the bolt.
Torque

: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

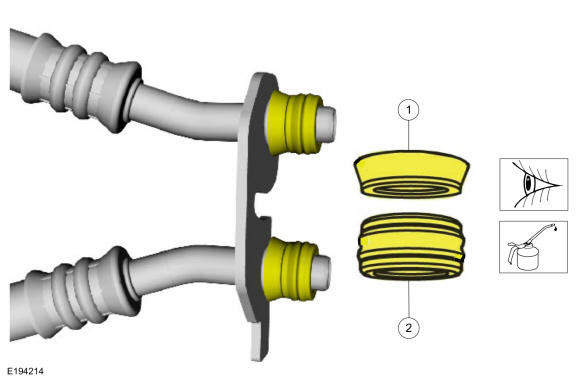

5.

Inspect and lubricate the band seals and backing rings. Install new band seals and backing rings if necessary.
1. 1.

  Backing ring (7J324).
1. 2.

  Seal (7D285).
  Material

  : Motorcraft® MERCON® LV Automatic Transmission Fluid / XT-10-QLVC (MERCON® LV) (WSS-M2C938-A)

Courtesy of FORD MOTOR COMPANY

6.

Connect the transmission fluid cooler supply and return tubes and install the bolt.
Torque

: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

7.

Check and fill the transmission fluid as necessary. REFER to: Transmission Fluid Level Check .
