Variable Camshaft Timing (VCT) Oil Control Solenoid: Removal
WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
RH (right-hand) Variable Camshaft Timing (VCT) Oil Control Solenoids
- 1.
Remove the RH valve cover. REFER to: VALVE COVER RH .
- 2.

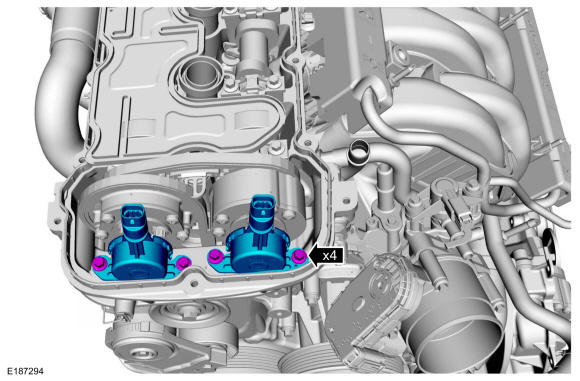

Remove the bolts and the RHVCT oil control solenoids.Torque:
Stage 1: 71 lb.in (8 Nm)
Stage 2: 20°
LH (left-hand) Variable Camshaft Timing (VCT) Oil Control Solenoids
- 3.
Remove the LH valve cover. REFER to: VALVE COVER LH .
- 4.

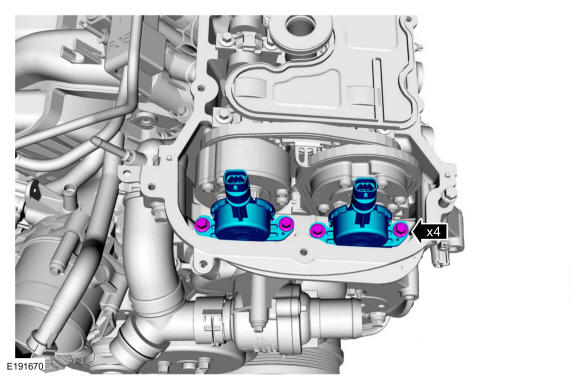

Remove the bolts and the LHVCT oil control solenoids.Torque:
Stage 1: 71 lb.in (8 Nm)
Stage 2: 20°
