Intake Manifold Runner Control (IMRC) Solenoid: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

1.

Remove the intake manifold. REFER to: INTAKE MANIFOLD .

2.

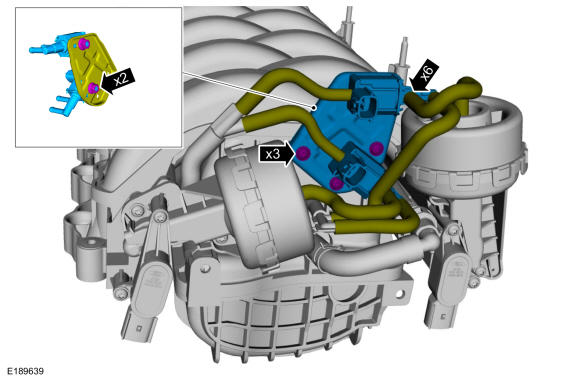

- Disconnect the 6 vacuum hoses from the IMRC solenoids, remove the 3 retainers and the solenoid mounting plate.
  Torque

  : 53 lb.in (6 Nm)
- Remove the 2 retainers and remove the IMRC solenoids.
  Torque

  : 71 lb.in (8 Nm)

Courtesy of FORD MOTOR COMPANY
