Intake Manifold Runner Control (IMRC) Position Sensor: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

1.

Remove the intake manifold. REFER to: INTAKE MANIFOLD .

2.

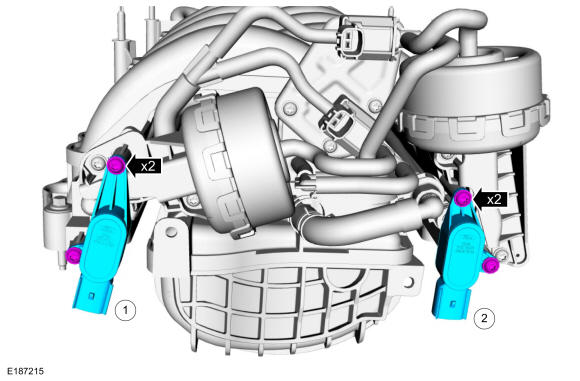

- Remove the retainers and the LHIMRC position sensor.
  Torque

  : 53 lb.in (6 Nm)
- Remove the retainers and the RHIMRC position sensor.
  Torque

  : 53 lb.in (6 Nm)

Courtesy of FORD MOTOR COMPANY
