Intake Manifold Runner Control (IMRC) Actuator: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

1.

Remove the IMRC position sensors. REFER to: Intake Manifold Runner Control (IMRC) Position Sensor .

2.

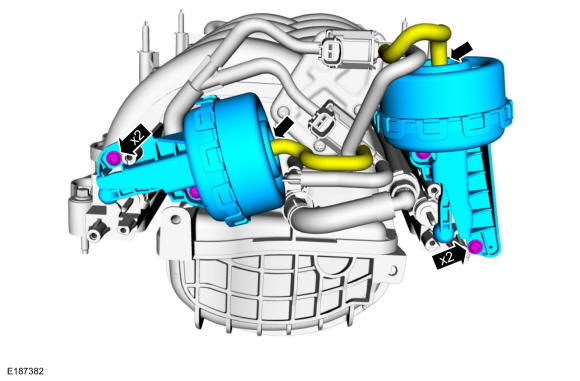

Remove the hoses, retainers and the IMRC actuators.
Torque

: 53 lb.in (6 Nm)

Courtesy of FORD MOTOR COMPANY
