Heated Oxygen Sensor (HO2S): Installation

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

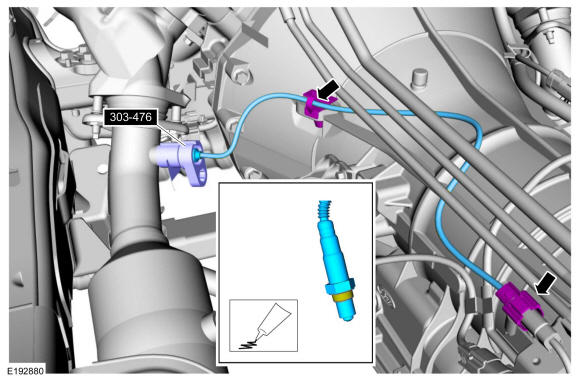

Left hand (LH) Heated oxygen sensor

1.
- Apply anti-seize to thread of sensor, Using special tool install the HO2S.
  Use Special Service Tool: 303-476 (T94P-9472-A) Socket, Exhaust Gas Oxygen Sensor.

  Material

  : High Temperature Nickel Anti-Seize Lubricant / XL-2

  Torque

  : 35 lb.ft (48 Nm)
- Install the wire into the retainer and connect the electrical connector.

Courtesy of FORD MOTOR COMPANY

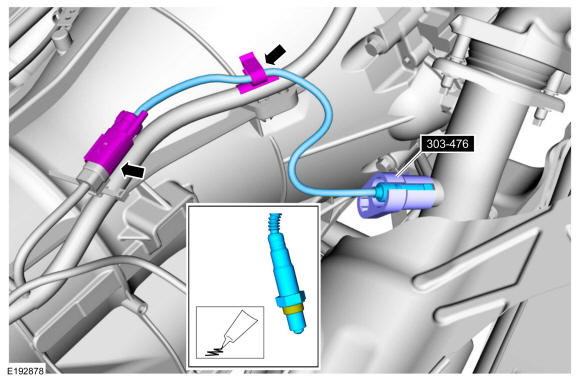

Right hand (RH) Heated oxygen sensor

2.
- Apply anti-seize to thread of sensor, Using special tool install the HO2S.
  Use Special Service Tool: 303-476 (T94P-9472-A) Socket, Exhaust Gas Oxygen Sensor.

  Material

  : High Temperature Nickel Anti-Seize Lubricant / XL-2

  Torque

  : 35 lb.ft (48 Nm)
- Install the wire into the retainer and connect the electrical connector.

Courtesy of FORD MOTOR COMPANY

All sensors

3.

To install, reverse the removal procedure.
