Crankshaft Position (CKP) Sensor: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.

  1. 1.

    Remove the RHF wheel and tire. REFER to: Wheel and Tire .

  1. 2.

    Remove the RH fender splash shield. REFER to: Fender Splash Shield .

  1. 3.

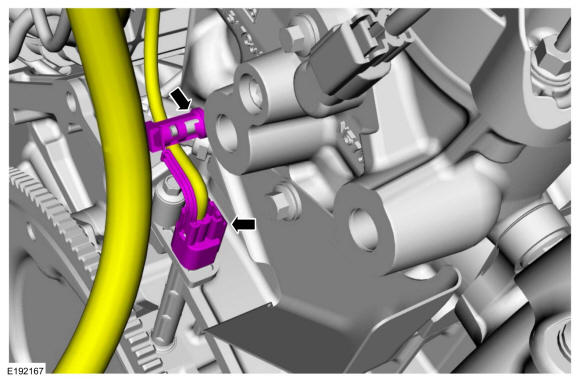

    Disconnect the CKP sensor electrical connector, and harness retainer from stud.
GFD41263Courtesy of FORD MOTOR COMPANY

  1. 4.

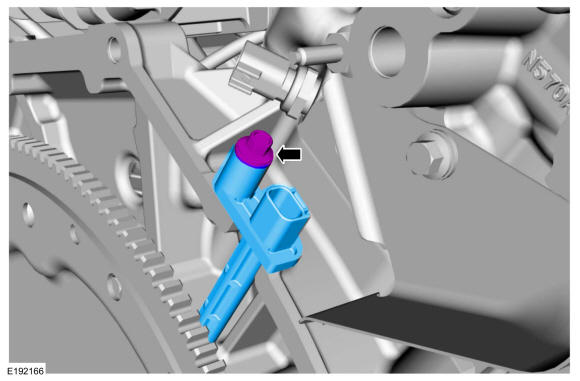

    Remove the bolt and the CKP sensor.

    Torque

    : 89 lb.in (10 Nm)

GFD41264Courtesy of FORD MOTOR COMPANY
