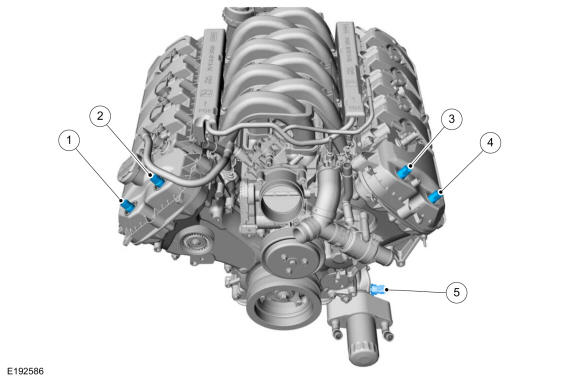

Electronic Engine Controls- Front
| Item | Description |
|---|---|
| 1 | RH exhaust VCT oil control solenoid |
| 2 | RH intake VCT oil control solenoid |
| 3 | LH intake VCT oil control solenoid |
| 4 | LH exhaust VCT oil control solenoid |
| 5 | EOP sensor |

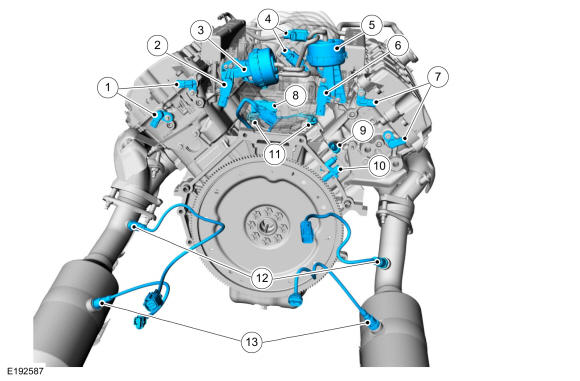

Electronic Engine Controls - Rear
| Item | Description |
|---|---|
| 1 | Left hand CMP sensors |
| 2 | Left hand IMRC position sensor |
| 3 | Left hand IMRC actuator |
| 4 | IMRC solenoids |
| 5 | Right hand IMRC actuator |
| 6 | Right hand IMRC position sensor |
| 7 | Right hand CMP sensors |
| 8 | MAP sensor |
| 9 | CHT sensor |
| 10 | CKP sensor |
| 11 | KS |
| 12 | HO2S |
| 13 | Catalyst monitor sensors |
Powertrain Control Module (PCM)
| Item | Description |
|---|---|
| 1 | PCM |
