Turbocharger Boost Pressure (TCBP) and Charger Air Cooler Temperature (CACT) Sensor: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

1.

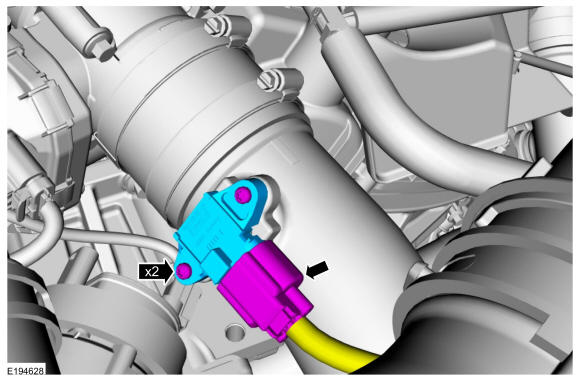

Disconnect the electrical connector, remove the retainers and the turbocharger boost pressure (TCBP) and charger air cooler temperature (CACT) sensor.
Torque

: 27 lb.in (3 Nm)

Courtesy of FORD MOTOR COMPANY
