Manifold Absolute Pressure and Temperature (MAPT) Sensor: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

  1. 1.

    Remove the engine appearance cover.
GFD38911Courtesy of FORD MOTOR COMPANY

  1. 2.

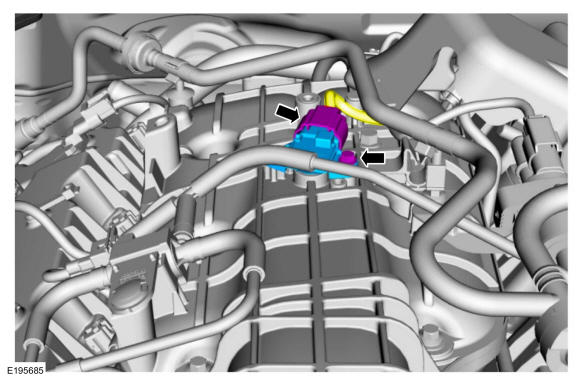

    • Disconnect the MAPT electrical connector.
    • Remove the bolt and the MAPT sensor
GFD41250Courtesy of FORD MOTOR COMPANY
