Manifold Absolute Pressure and Temperature (MAPT) Sensor: Installation

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

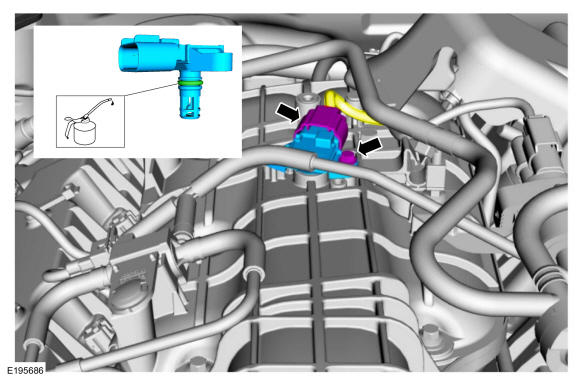

1.

NOTE: Lubricate the O-ring seal with clean engine oil.
- Install the MAPT sensor and the bolt.
  Torque

  : 27 lb.in (3 Nm)
- Connect the MAPT electrical connector.

Courtesy of FORD MOTOR COMPANY

2.

Install the engine appearance cover.

Courtesy of FORD MOTOR COMPANY
