Knock Sensor (KS): Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

1.

Remove the fuel rail. REFER to: FUEL RAIL .

2.

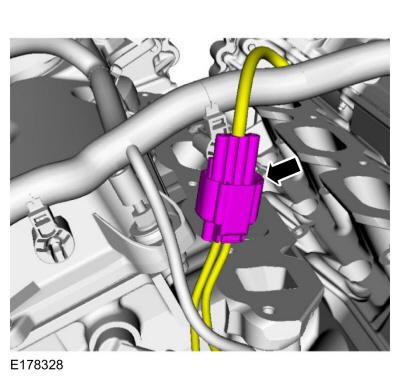

Disconnect the KS electrical connector.

Courtesy of FORD MOTOR COMPANY

3.

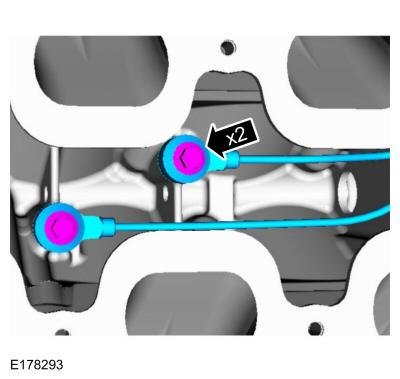

Remove the bolts and the KS.
Torque

: 177 lb.in (20 Nm)

Courtesy of FORD MOTOR COMPANY
