Heated Oxygen Sensor (HO2S): Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Right hand (RH) Heated oxygen sensor (HO2S)

  1. 1.

    With the vehicle in NEUTRAL, position it on a hoist. REFER to: Jacking and Lifting - Overview .

  1. 2.

    If equipped, remove the underbody shield.
GFD38415Courtesy of FORD MOTOR COMPANY

  1. 3.

    Disconnect the HO2S electrical connector.
GFD41242Courtesy of FORD MOTOR COMPANY

  1. 4.

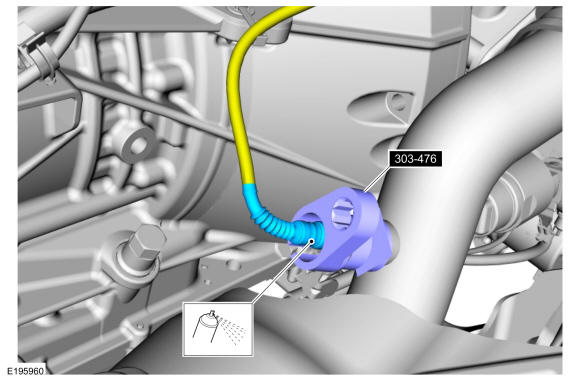

    Apply penetrating oil to sensor, using the special tool remove the HO2S.

    Use Special Service Tool: 303-476 (T94P-9472-A) Socket, Exhaust Gas Oxygen Sensor.

    Material

    : Penetrating and Lock Lubricant / XL-1

GFD41243Courtesy of FORD MOTOR COMPANY

Left hand (LH) Heated oxygen sensor (HO2S)

  1. 5.

    Remove the engine appearance cover.
GFD38911Courtesy of FORD MOTOR COMPANY

  1. 6.

    Disconnect the electrical connector.
GFD41244Courtesy of FORD MOTOR COMPANY

  1. 7.

    With the vehicle in NEUTRAL, position it on a hoist. REFER to: Jacking and Lifting - Overview .

  1. 8.

    If equipped, remove the underbody shield.
GFD38415Courtesy of FORD MOTOR COMPANY

  1. 9.

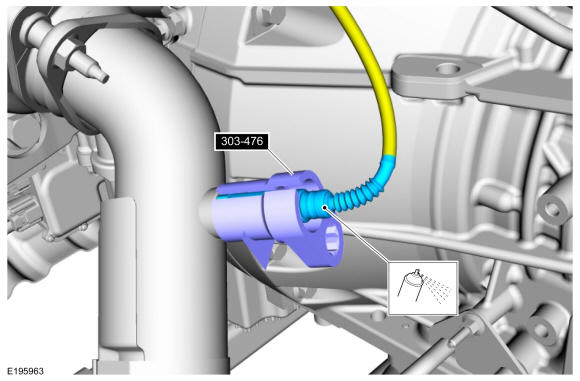

    Apply penetrating oil to sensor, using the special tool remove the HO2S.

    Use Special Service Tool: 303-476 (T94P-9472-A) Socket, Exhaust Gas Oxygen Sensor.

    Material

    : Penetrating and Lock Lubricant / XL-1

GFD41245Courtesy of FORD MOTOR COMPANY
