Fuel Rail Pressure (FRP) Sensor: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

  1. 1.

    Release the fuel system pressure. REFER to: FUEL SYSTEM PRESSURE RELEASE .

  1. 2.

    Disconnect the battery ground cable. REFER to: Battery Disconnect and Connect .

  1. 3.

    Remove the intake manifold. REFER to: INTAKE MANIFOLD .

  1. 4.

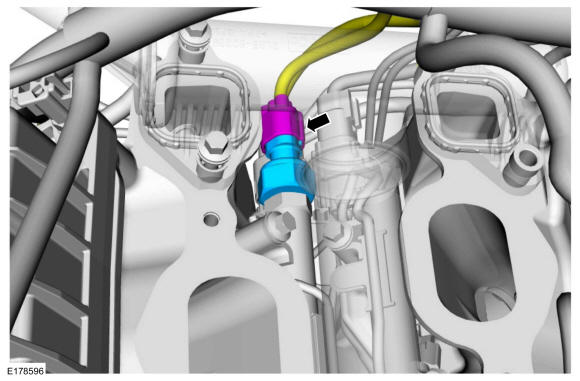

    • Disconnect the FRP sensor electrical connector.
    • Remove the FRP sensor.
GFD41240Courtesy of FORD MOTOR COMPANY
