Fuel Rail Pressure (FRP) Sensor: Installation

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

1.

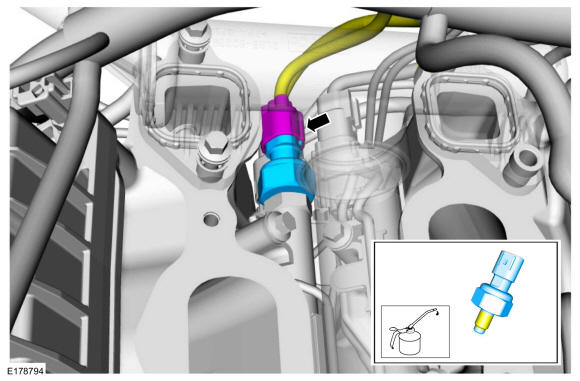

NOTE: Lubricate the thread area of the new FRP sensor with clean engine oil prior to installation.
- Install the FRP sensor.
  Torque

  : 24 lb.ft (33 Nm)
- Connect the FRP sensor electrical connector.

GFD41241

Courtesy of FORD MOTOR COMPANY

2.

Install the intake manifold. REFER to: INTAKE MANIFOLD .

3.

Connect the battery ground cable. Refer to: Battery Disconnect and Connect .
