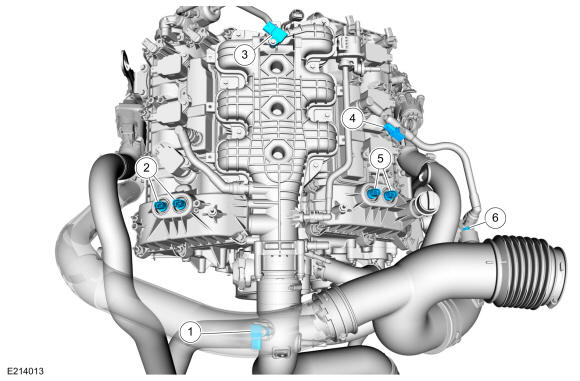

Electronic Engine Controls- Front
WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
Turbocharger Boost Pressure (TCBP) and Charger Air Cooler Temperature (CACT) Sensor |
| 2 |
Right hand VCT oil control solenoids |
| 3 |
MAPT sensor |
| 4 |
Crankcase Pressure Sensor |
| 5 |
Left hand VCT oil control solenoids |
| 6 |
IAT sensor |
