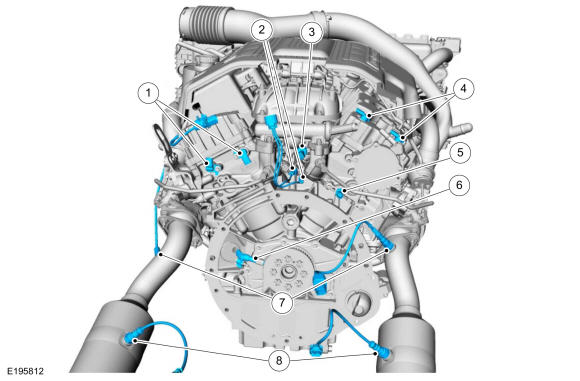

Electronic Engine Controls - Rear

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of FORD MOTOR COMPANY

Item	Description
1	Left hand CMP sensor
2	KS
3	FRP sensor
4	Right hand CMP sensor
5	CHT sensor
6	CKP sensor
7	HO2S
8	Catalyst monitor sensors
