Variable Camshaft Timing (VCT) Oil Control Solenoid: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

RH (right-hand) Variable Camshaft Timing (VCT) Oil Control Solenoids

1.

Remove the RH valve cover. REFER to: VALVE COVER RH - 3.5L Duratec (209kW/284PS).

2.

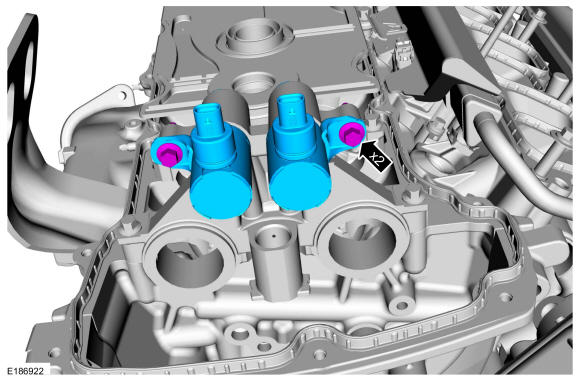

Remove the bolts and the VCT oil control solenoids.
Torque:

Stage 1: 71 lb.in (8 Nm)

Stage 2: 20°

Courtesy of FORD MOTOR COMPANY

LH (left-hand) Variable Camshaft Timing (VCT) Oil Control Solenoids

3.

Remove the LH valve cover. REFER to: VALVE COVER LH - 3.5L Duratec (209kW/284PS).

4.

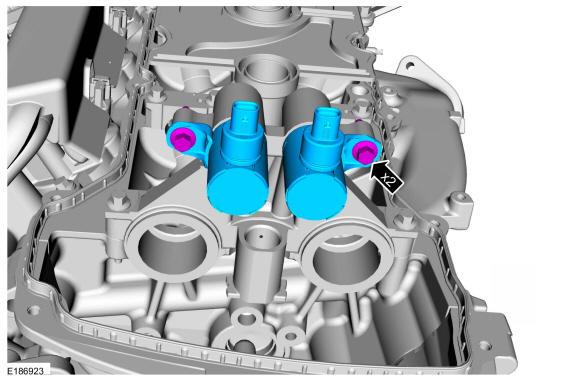

Remove the bolts and the VCT oil control solenoids.
Torque:

Stage 1: 71 lb.in (8 Nm)

Stage 2: 20°

Courtesy of FORD MOTOR COMPANY
